Description

Parting Off 150.10A-20/25 HSS Blade /strong>

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113014
  • Brand Seco
  • Model Number 02578590
  • Barcode Number 78590025000105
  • Net Weight (kg) 0.115
  • Designation 150.10A-25-4
  • Connection Text Workpiece Side (ctws) 150.10-4
  • Overall Width X Length (mm) 3.4 x 150
  • Cutting Depth Maximum (cdx) mm 70
  • Connection Text Machine Side (ctms) mm Blade-25
  • Work Piece Parting Diameter Maximum (CUTDIA) mm 140
  • Cutting Width (mm) 4
  • Functional Height (HF) mm 25
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Type Parting Off Blade
  • Shank Type Blade
  • Direction Of Cutting (hand) Neutral
  • Version (internal/external/both) External

Video

SKU: A0113014

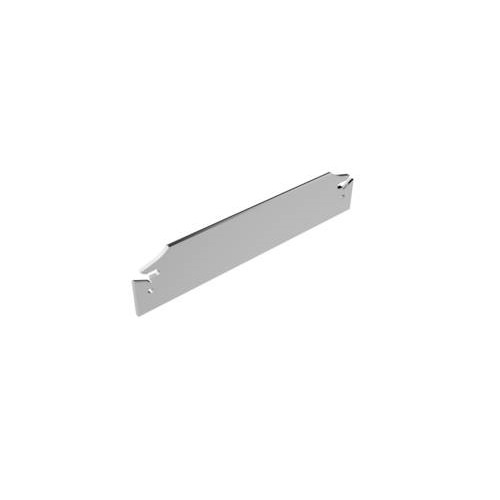

Seco 3.4 x 150mm Parting Off 150.10A-20/25 HSS Blade 150.10A-25-4

Parting Off 150.10A-20/25 HSS Blade

$205.04
RRP $256.30
SAVE $51.26 (20%)
