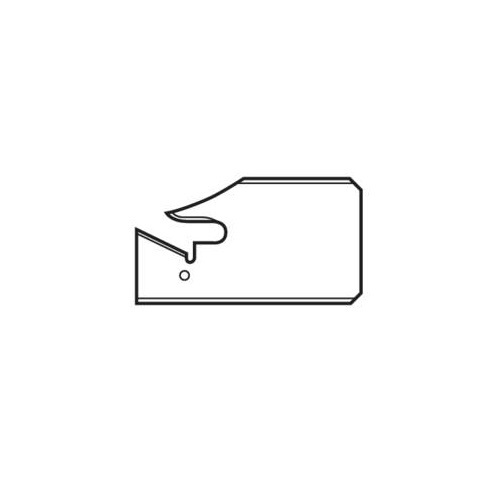

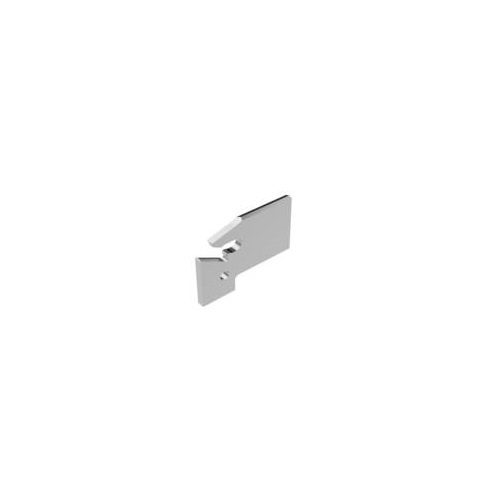

Seco 3.4 x 33mm Parting Off 150.10A-15 HSS Blade L150.10A-15-4

Description

Parting Off 150.10A-15 HSS Blade

Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

AIMS SKU A0113022

Brand Seco

Model Number 02578594

Barcode Number 78594025000103

Net Weight (kg) 0.014

Type Parting Off Blade

Designation L150.10A-15-4

Shank Type Blade

Connection Text Machine Side (CTMS) Blade-15

Direction Of Cutting (hand) Left

Version (internal/external/both) External

Connection Text Workpiece Side (ctws) 150.10-4

Overall Width X Length (mm) 3.4 x 33

Cutting Depth Maximum (cdx) mm 19

Work Piece Parting Diameter Maximum (CUTDIA) mm 38

Functional Height (HF) mm 15.5

Tool Cutting Edge Angle (KAPR) 90.0 deg

Cutting Width (CW) mm 4
