Seco 3.4 x 33mm Parting Off 150.10A-15 HSS Blade R150.10A-15-4

Description

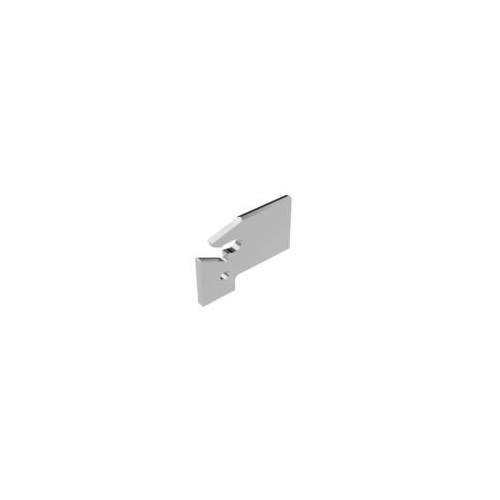

Parting Off 150.10A-15 HSS Blade

Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

AIMS SKU A0113023

Brand Seco

Model Number 02578596

Barcode Number 78596025000107

Net Weight (kg) 0.014

Type Parting Off Blade

Designation R150.10A-15-4

Shank Type Blade

Connection Text Machine Side (CTMS) Blade-15

Direction Of Cutting (hand) Right

Version (internal/external/both) External

Connection Text Workpiece Side (ctws) 150.10-4

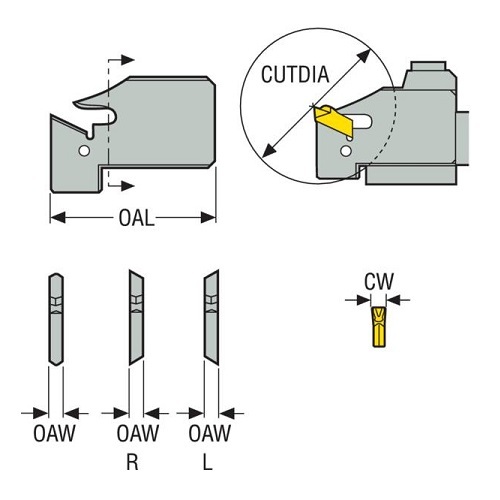

Overall Width X Length (mm) 3.4 x 33

Cutting Depth Maximum (cdx) mm 19

Work Piece Parting Diameter Maximum (CUTDIA) mm 38

Functional Height (HF) mm 15.5

Tool Cutting Edge Angle (KAPR) 90.0 deg

Cutting Width (CW) mm 4
