Description

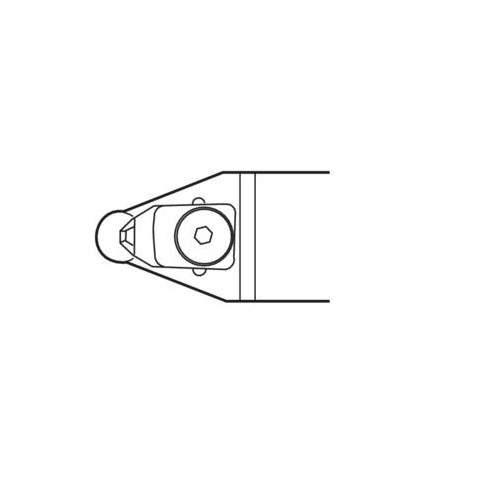

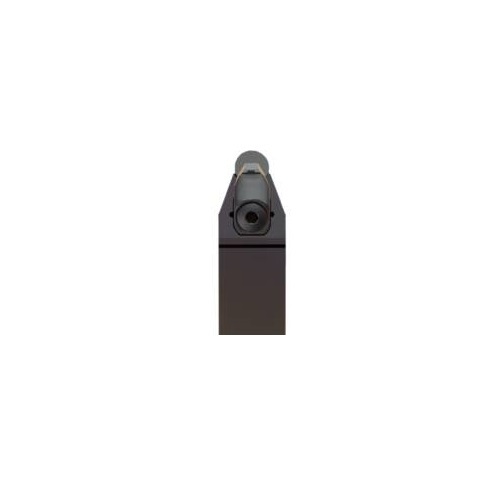

Seco Turning External Toolholder Clamp Lock Neutral 45° R Insert Shape CRDNN-16-2

Turning External Toolholder (Clamp Lock - D Type - R Insert Shape)

  • Clamp lock assembly.
  • R insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114759
  • Brand Seco
  • Model Number 00073874
  • Barcode Number 73874000000102
  • Net Weight (kg) 0.7
  • Designation CRDNN-16-2

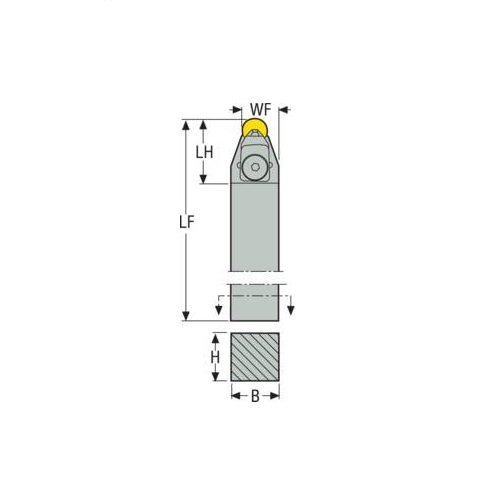

  • Functional Length (LF) 152.4mm
  • Insert Shape Code (SC) R
  • Insert Size Inscribed Circle Diameter (mm) 2
  • Functional Width (WF) mm 19.1
  • Cutting Edge Length (mm) 2
  • Inclination Angle (LAMS) -7.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Height Of Tool Holder Shank (H) mm 25.4
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Cutting Depth Maximum (cdx) mm 35.1
  • Connection Text Workpiece Side (ctws) RN0603
  • Shank Width (b) mm 25.4
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 25.4
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Clamp Lock
SKU: A0114759

Seco Turning External Toolholder Clamp Lock 152.4 x 19.1 x 2mm Neutral 45° R Insert Shape CRDNN-16-2

Clamp Lock - D Type - R Insert Shape

$241.12
RRP $301.40
SAVE $60.28 (20%)
