Description

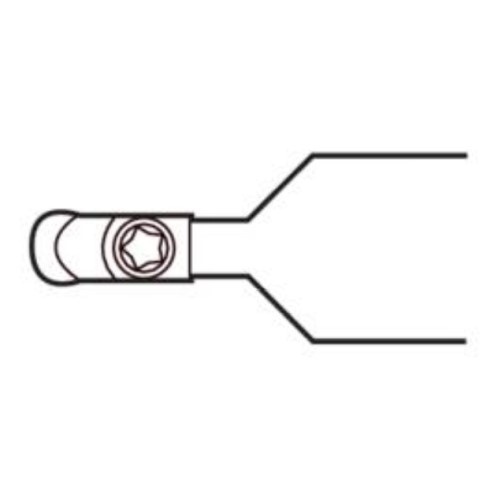

Seco Turning External Toolholder Clamp Lock Neutral 0° R Insert Shape CRDCN3225P06C

Turning External Toolholder (Clamp Lock - D Type - R Insert Shape - C Surface)

  • Clamp lock assembly.
  • R insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.
  • C surface qualified back and end, and length 5" long.
  • 7° insert side clearance angles.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114756
  • Brand Seco
  • Model Number 02926478
  • Barcode Number 26478029000109
  • Net Weight (kg) 0.955
  • Designation CRDCN3225P06C

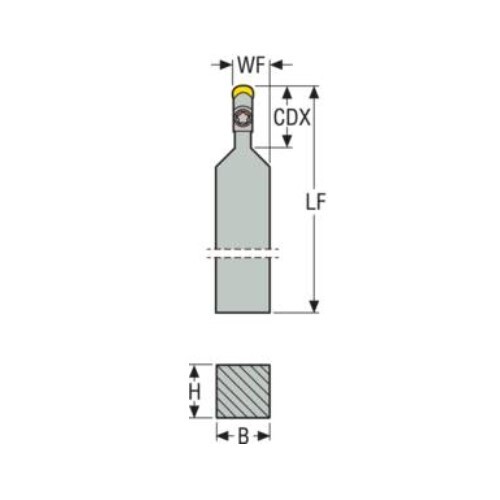

  • Shank Length (LS) mm 150.6
  • Insert Shape Code (SC) R
  • Head Length (LH) 19.4mm
  • Functional Width (WF) mm 15.6
  • Cutting Edge Length (mm) 6
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Functional Length (LF) 170mm
  • Height Of Tool Holder Shank (H) mm 32
  • Tool Cutting Edge Angle (KAPR) 0.0 deg
  • Cutting Depth Maximum (cdx) mm 19.4
  • Connection Text Workpiece Side (ctws) RC0602
  • Shank Width (b) mm 25
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 3225
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Clamp Lock

Video

SKU: A0114756

Seco Turning External Toolholder Clamp Lock 170 x 15.6 x 6mm Neutral 0° R Insert Shape CRDCN3225P06C

Clamp Lock - D Type - R Insert Shape - C Surface

$305.36
RRP $381.70
SAVE $76.34 (20%)
