Description

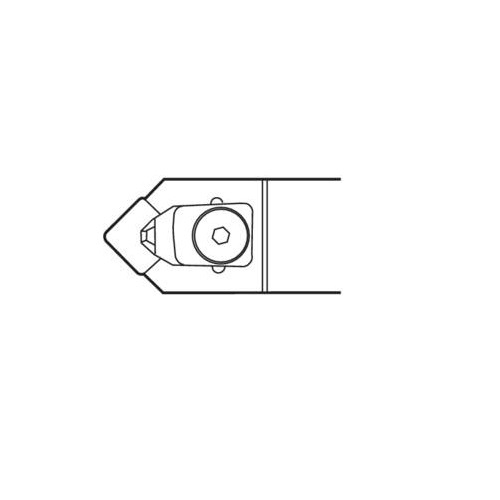

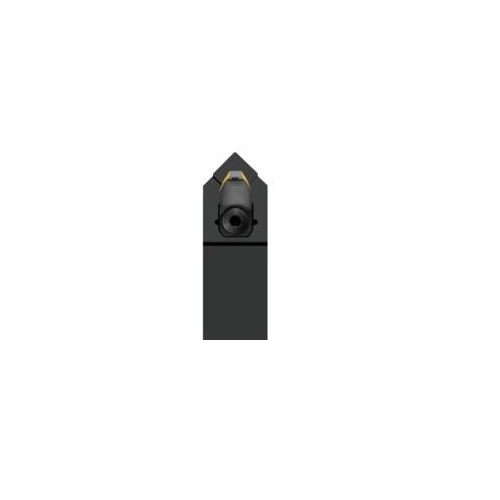

Seco Turning External Toolholder Clamp Lock Neutral 45° S Insert Shape CSDNN-16-4

Turning External Toolholder (Clamp Lock - D Type - S Insert Shape)

  • Clamp lock assembly.
  • S insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114791
  • Brand Seco
  • Model Number 00073786
  • Barcode Number 73786000000108
  • Net Weight (kg) 0.78
  • Designation CSDNN-16-4
  • Tool Type D Type
  • Insert Shape Code (SC) S

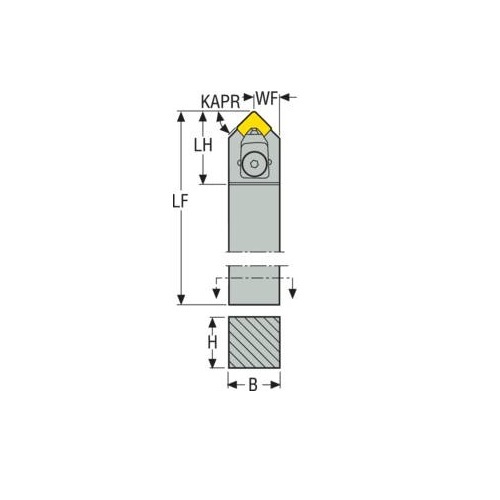

  • Head Length (LH) 43.2mm
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Functional Width (WF) mm 12.7
  • Cutting Edge Length (mm) 4
  • Inclination Angle (LAMS) -7.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) B
  • Functional Length (LF) 152.4mm
  • Height Of Tool Holder Shank (H) mm 25.4
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) SN1203
  • Shank Width (b) mm 25.4
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 25.4
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Clamp Lock
SKU: A0114791

Seco Turning External Toolholder Clamp Lock 152.4 x 12.7 x 4mm Neutral 45° S Insert Shape CSDNN-16-4

Clamp Lock - D Type - S Insert Shape

$241.12
RRP $301.40
SAVE $60.28 (20%)
