Seco Clamp Lock Left - L Type - C Insert Shape - SECO

Description

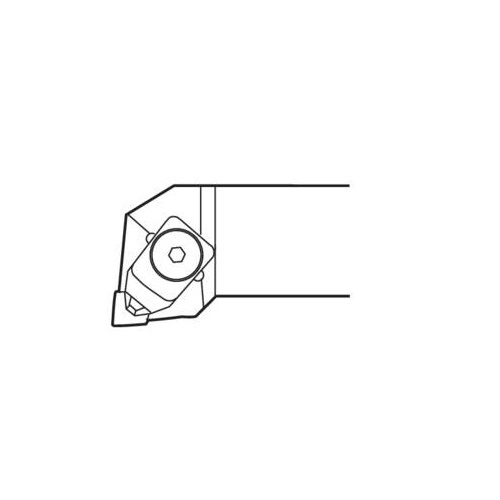

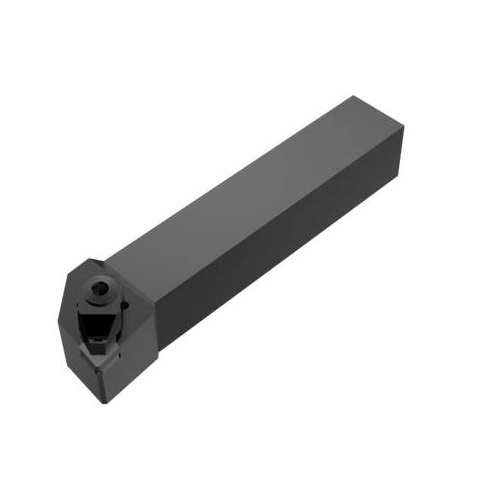

Seco Turning External Toolholder Clamp Lock Left 95° C Insert Shape CCLNL2525M09

Turning External Toolholder (Clamp Lock - L Type - C Insert Shape)

Clamp lock assembly.
C insert shape.
L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114740

Brand Seco

Model Number 00089174

Barcode Number 89174000000104

Net Weight (kg) 0.753

Designation CCLNL2525M09

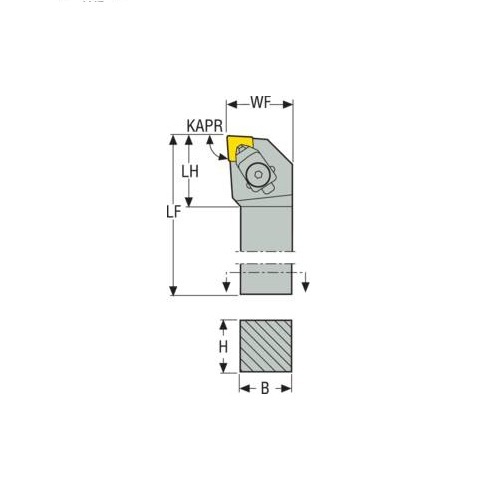

Functional Length (LF) 150mm

Insert Shape Code (SC) C

Head Length (LH) 27mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 9

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Tool Type L Type

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CN0903

Shank Width (b) mm 25

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2525

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Clamp Lock
