Description

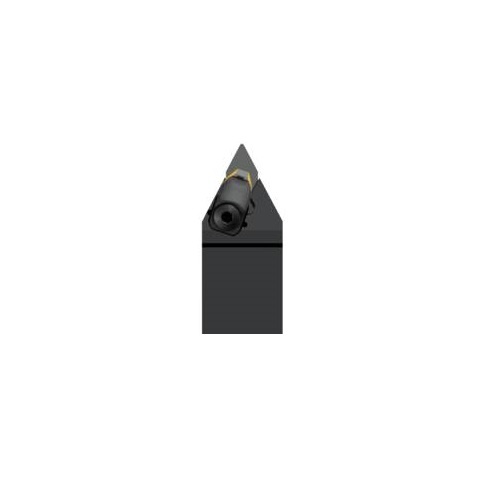

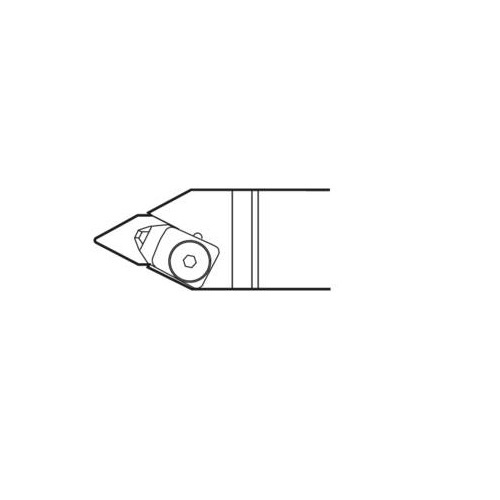

Seco Turning External Toolholder Clamp Lock Neutral 62.5° D Insert Shape CDNNN2525M11

Turning External Toolholder (Clamp Lock - N Type - D Insert Shape)

  • Clamp lock assembly.
  • D insert shape.
  • N tool type.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114754
  • Brand Seco
  • Model Number 00089193
  • Barcode Number 89193000000105
  • Net Weight (kg) 0.69
  • Designation CDNNN2525M11

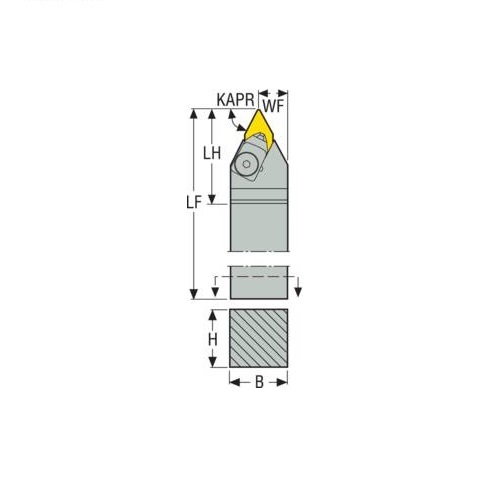

  • Functional Length (LF) 150mm
  • Insert Shape Code (SC) D
  • Head Length (LH) 30mm
  • Functional Width (WF) mm 13.2
  • Cutting Edge Length (mm) 11
  • Inclination Angle (LAMS) -5.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) N
  • Tool Type N Type
  • Height Of Tool Holder Shank (H) mm 25
  • Tool Cutting Edge Angle (KAPR) 62.5 deg
  • Connection Text Workpiece Side (ctws) DN1103
  • Shank Width (b) mm 25
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 2525
  • Rake Angle Orthogonal (gamo) -9.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Clamp Lock
SKU: A0114754

Seco Turning External Toolholder Clamp Lock 150 x 13.2 x 11mm Neutral 62.5° D Insert Shape CDNNN2525M11

Clamp Lock - N Type - D Insert Shape

$241.12
RRP $301.40
SAVE $60.28 (20%)
