Seco Clamp Lock - R Type - F Insert Shape - 11° ISCA - SECO

Description

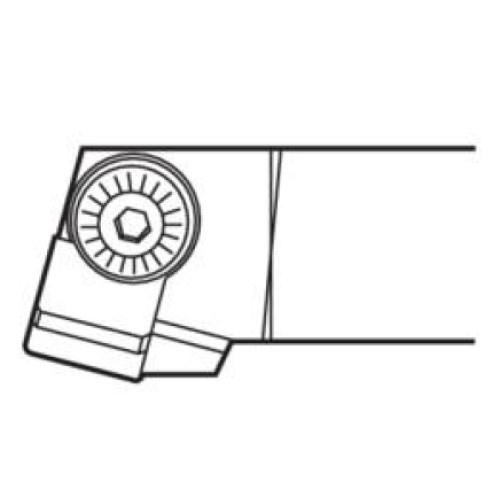

Seco Turning External Toolholder Clamp Lock Right 45° S Insert Shape CSSPR2020-12

Turning External Toolholder (Clamp Lock - S Type - S Insert Shape - 11° ISCA)

Clamp lock assembly.
S insert shape.
S tool type, offset shank with 45° side cutting edge angle.
11° (ISCA) Insert Side Clearance Angles.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114806

Brand Seco

Model Number 75006109

Barcode Number 6109750000101

Net Weight (kg) 0.397

Designation CSSPR2020-12

Rake Angle Orthogonal (gamo) 5.0 deg

Connection Text Machine Side (CTMS) 2020

Direction Of Cutting (hand) Right

Shank Width (b) mm 20

Connection Text Workpiece Side (ctws) SP1203

Tool Cutting Edge Angle (KAPR) 45.0 deg

Height Of Tool Holder Shank (H) mm 20

Functional Length (LF) 125mm

Tool Type S Type

Tool Cutting Edge Angle Code (KAPRC) S

Inclination Angle (LAMS) 0.0 deg

Cutting Edge Length (mm) 12

Functional Width (WF) mm 25

Insert Shape Code (SC) S

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Clamp Lock
