Description

***Note: Chipbreaker/Insert Not Included***

Seco Turning External Toolholder Clamp Lock Right 91° T Insert Shape CTGPR1616-11

Turning External Toolholder (Clamp Lock - G Type - T Insert Shape)

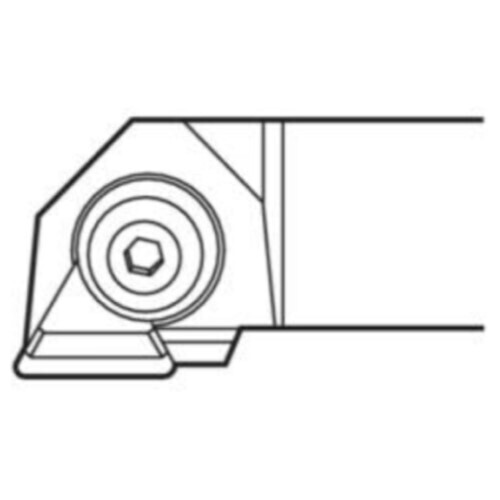

  • Clamp lock assembly.
  • T insert shape.
  • G tool type, offset shank with 0° side cutting edge angle.
  • 11° (ISCA) Insert Side Clearance Angles.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114811
  • Brand Seco
  • Model Number 75006553
  • Barcode Number 6553750000102
  • Net Weight (kg) 0.198
  • Designation CTGPR1616-11

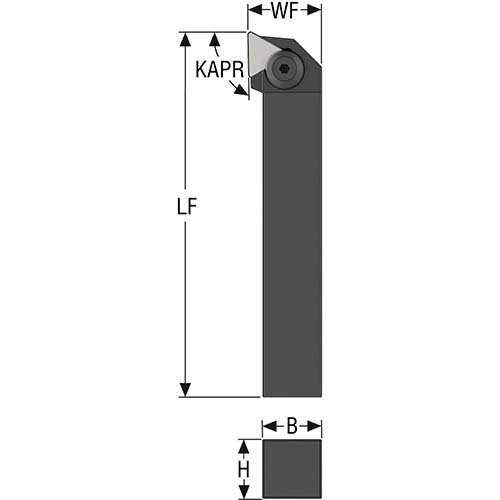

  • Functional Length (LF) 100mm
  • Insert Shape Code (SC) T
  • Functional Width (WF) mm 20.2
  • Cutting Edge Length (mm) 11
  • Inclination Angle (LAMS) 1.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) G
  • Cutting Diameter Internal Minimum (DCINN) 16mm
  • Tool Type G Type
  • Height Of Tool Holder Shank (H) mm 16
  • Tool Cutting Edge Angle (KAPR) 91.0 deg
  • Connection Text Workpiece Side (ctws) TP1103
  • Shank Width (b) mm 16
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 1616
  • Rake Angle Orthogonal (gamo) 5.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Clamp Lock
SKU: A0114811

Seco Turning External Toolholder Clamp Lock 100 x 20.2 x 11mm Right 91° T Insert Shape CTGPR1616-11

Clamp Lock - G Type - T Insert Shape

$151.36
RRP $189.20
SAVE $37.84 (20%)
