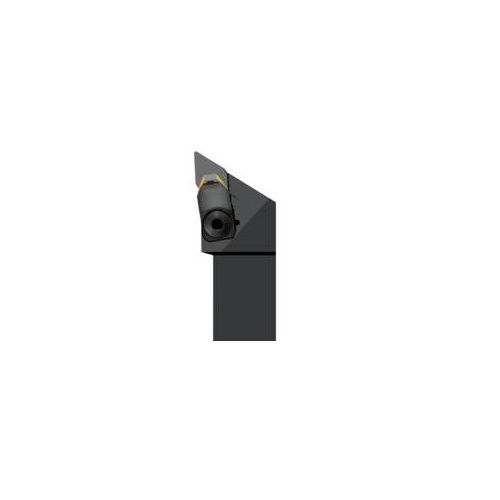

Seco Turning External Toolholder Clamp Lock Right 93° D Insert Shape CDJNR2525M11

Turning External Toolholder (Clamp Lock - J Type - D Insert Shape)

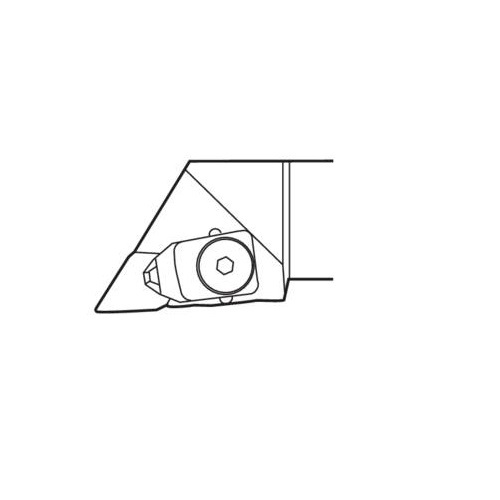

  • Clamp lock assembly.
  • D insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114752
  • Brand Seco
  • Model Number 00089189
  • Barcode Number 89189000000108
  • Net Weight (kg) 0.726
  • Designation CDJNR2525M11

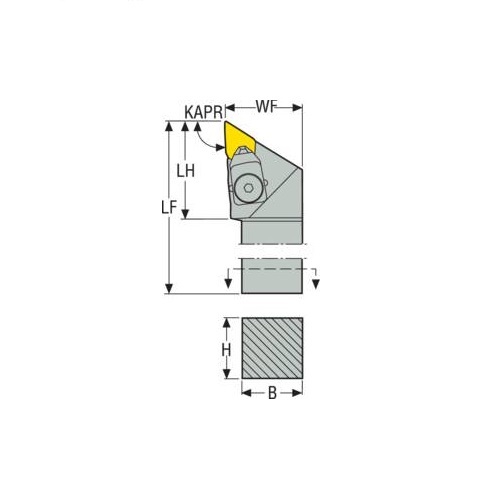

  • Functional Length (LF) 150mm
  • Insert Shape Code (SC) D
  • Head Length (LH) 34mm
  • Functional Width (WF) mm 32
  • Cutting Edge Length (mm) 11
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Tool Type J Type
  • Height Of Tool Holder Shank (H) mm 25
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) DN1103
  • Shank Width (b) mm 25
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 2525
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Clamp Lock
SKU: A0114752

Seco Turning External Toolholder Clamp Lock 150 x 34 x 11mm Right 93° D Insert Shape CDJNR2525M11

Clamp Lock - J Type - D Insert Shape

$241.12
RRP $301.40
SAVE $60.28 (20%)
