Description

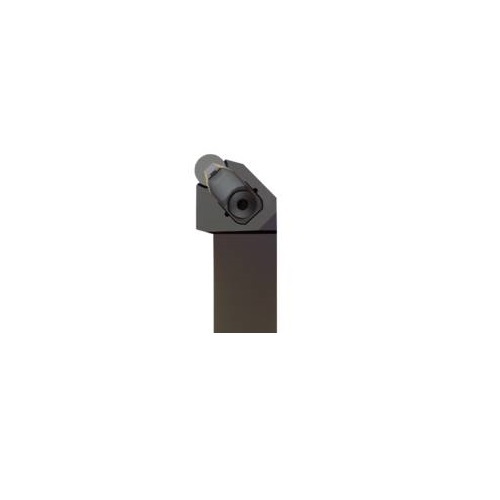

Seco Turning External Toolholder Clamp Lock Right 45° R Insert Shape CRSNR2525M06

Turning External Toolholder (Clamp Lock - S Type - R Insert Shape)

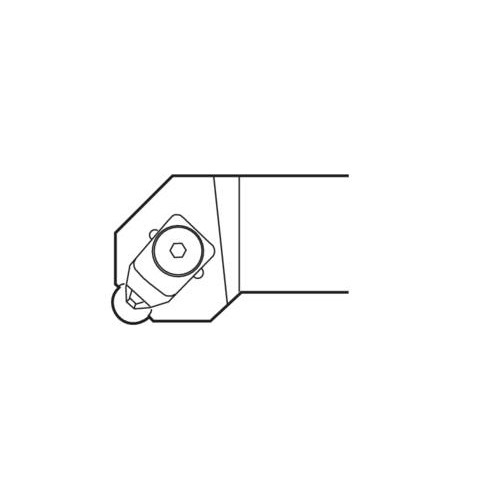

Clamp lock assembly.
R insert shape.
S tool type, offset shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114776

Brand Seco

Model Number 75069238

Barcode Number 69238750000107

Net Weight (kg) 0.76

Designation CRSNR2525M06

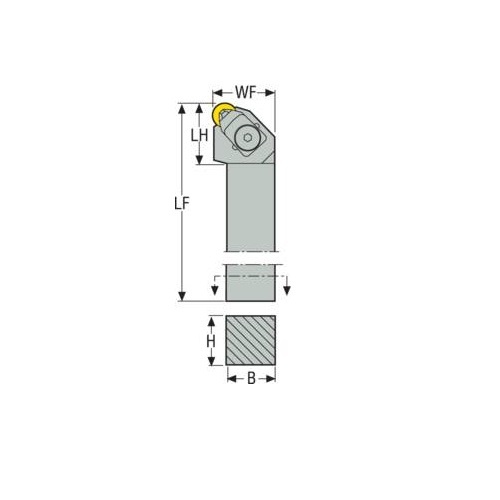

Functional Length (LF) 150mm

Insert Shape Code (SC) R

Head Length (LH) 27mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 6

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) S

Tool Type S Type

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 45.0 deg

Connection Text Workpiece Side (ctws) RN0603

Shank Width (b) mm 25

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 2525

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Clamp Lock
