Seco Clamp Lock Right - S Type - R Insert Shape - C Surface - SECO

Description

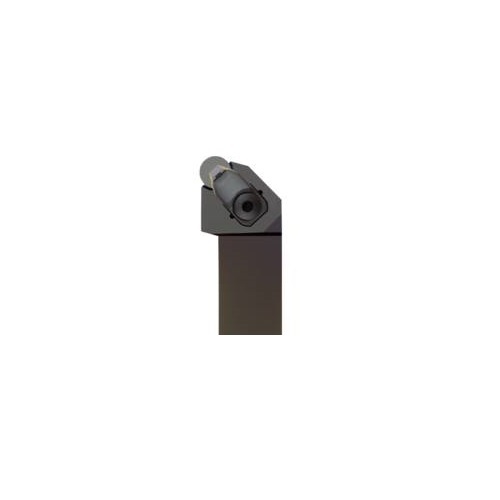

Seco Turning External Toolholder Clamp Lock Right 0° R Insert Shape CRSNR2525M12C

Turning External Toolholder (Clamp Lock - S Type - R Insert Shape - C Surface)

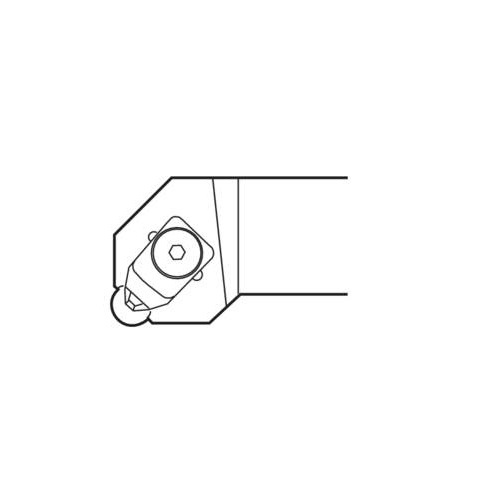

Clamp lock assembly.
R insert shape.
S tool type, offset shank with 45° side cutting edge angle.
C surface qualified back and end, and length 5" long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114784

Brand Seco

Model Number 02926488

Barcode Number 26488029000108

Net Weight (kg) 0.746

Designation CRSNR2525M12C

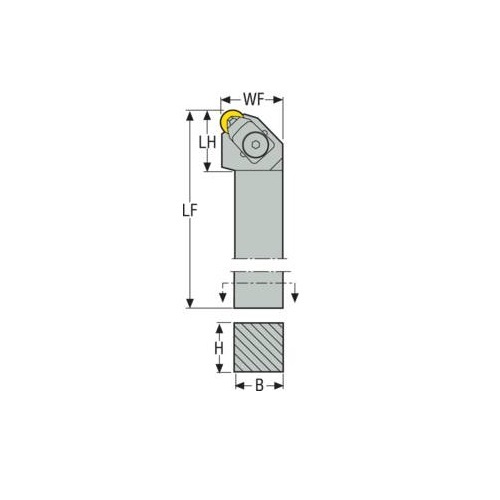

Functional Length (LF) 150mm

Insert Shape Code (SC) R

Head Length (LH) 28mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) S

Tool Type S Type

Shank Length (LS) mm 122

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 0.0 deg

Connection Text Workpiece Side (ctws) RN1207

Shank Width (b) mm 25

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 2525

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Clamp Lock
