Description

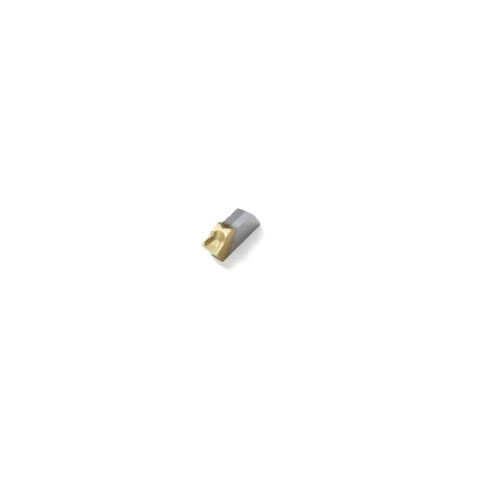

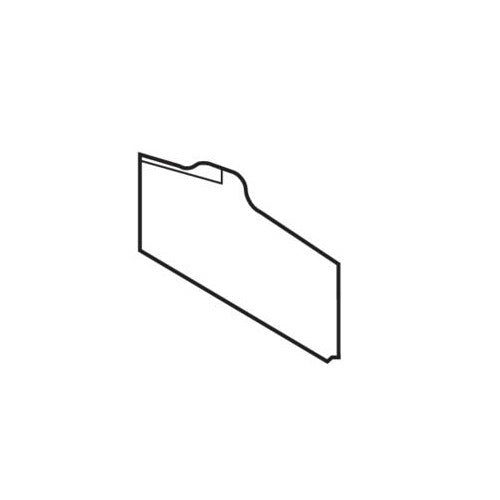

Turning 150.10 Parting Off Left Insert (16 Chipbreaker)

  • The left inserts have a setting angle of 6° in order to eliminate burrs and minimize the parting-off pip left on the workpiece.
  • To reduce pip size with N-inserts, use the smallest width possible.
  • The correct centre height is another major factor to avoid pips (control to ±0.1 mm).
  • When using R-/L-inserts, the feed rate should be reduced by approximately 30%.
  • Convex or concave surfaces will be avoided, when using right or left hand inserts, by reducing the feed rate.
  • Carbide PVD and carbide CVD

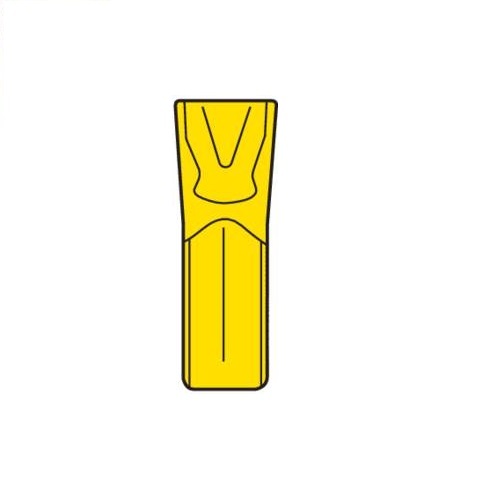

16 Chipbreaker

  • First choice for steel and cast iron in difficult conditions and/or high feed rates.
  • 20° positive cutting rake angle.
  • Strong protection chamfer.

All About Seco 150.10 Parting Off Insert:

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo.
  • A high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113082
  • Brand Seco
  • Model Number 02430488
  • Barcode Number 30488024001004
  • Net Weight (kg) 0.001
  • Designation 150.10-2.5L6-16 CP600

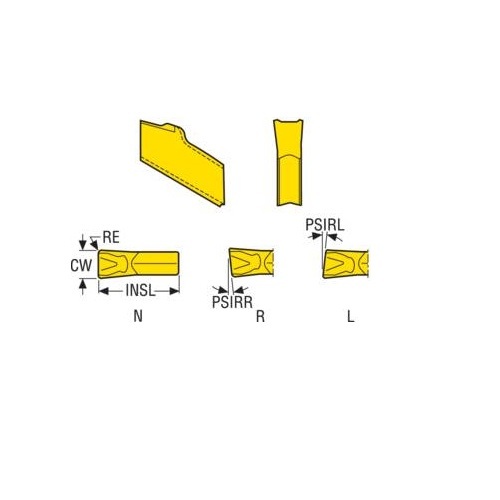

  • Cutting Width (mm) 2.5
  • Insert Length (INSL) mm 9
  • Cutting Edge Angle Major Left Hand (PSIRL) 6.0 deg
  • Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
  • Corner Radius (RE) mm 0.17
  • Insert Seat Size Code (SSC) 2.5
  • Type Parting Off Insert
  • Grade Type Carbide PVD
  • Insert Hand (IH) Left
SKU: A0113082

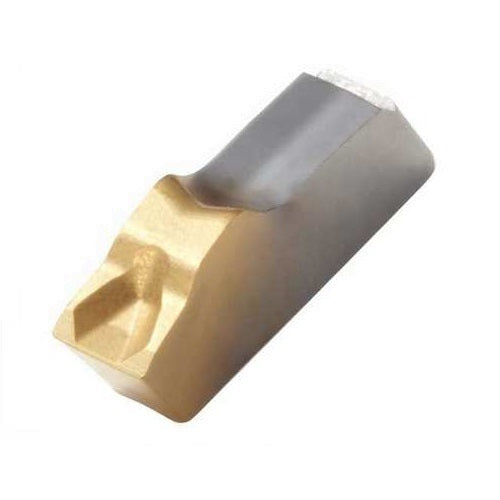

Seco Parting Off Left Insert CP600 2.5mm 16 Chipbreaker 150.10-2.5L6-16,CP600 - Pack of 10

Turning 150.10 Parting Off Left Insert

$244.06
