Specifications
- AIMS SKU A0113076
- Brand Seco
- Model Number 02430486
- Barcode Number 30486024001000
- Net Weight (kg) 0.001

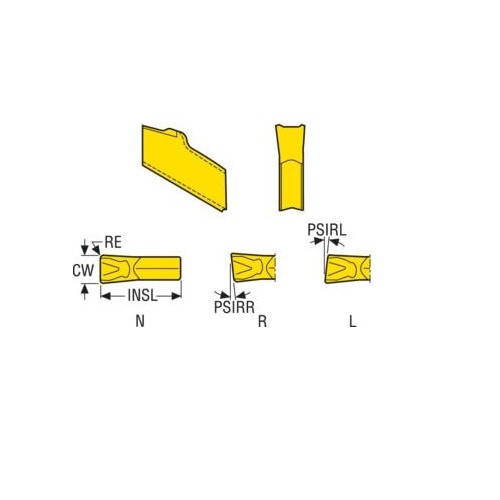

- Designation 150.10-2.5R6-16 CP600
- Cutting Width (mm) 2.5
- Insert Length (INSL) mm 9
- Cutting Edge Angle Major Left Hand (PSIRL) 0.0 deg
- Cutting Edge Angle Major Right Hand (PSIRR) 6.0 deg
- Corner Radius (RE) mm 0.17
- Insert Seat Size Code (SSC) 2.5
- Type Parting Off Insert
- Grade Type Carbide PVD
- Insert Hand (IH) Right
SKU: A0113076

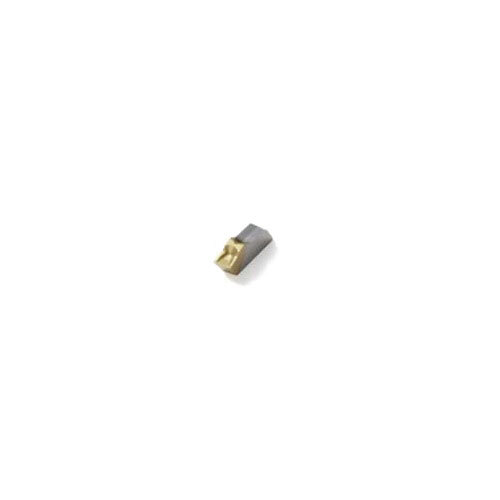

Seco Parting Off Right Insert CP600 2.5mm 16 Chipbreaker 150.10-2.5R6-16,CP600 - Pack of 10
Turning 150.10 Parting Off Right Insert
$244.06
