Seco Crownloc™ Chamfer Module 28 x 1.5 x 12 - 13mm SD100-C45-12.00/12.49

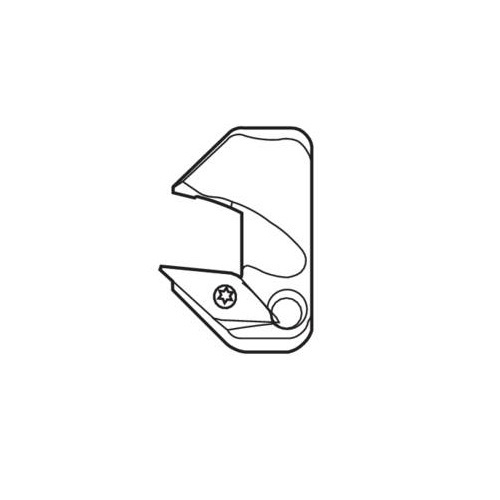

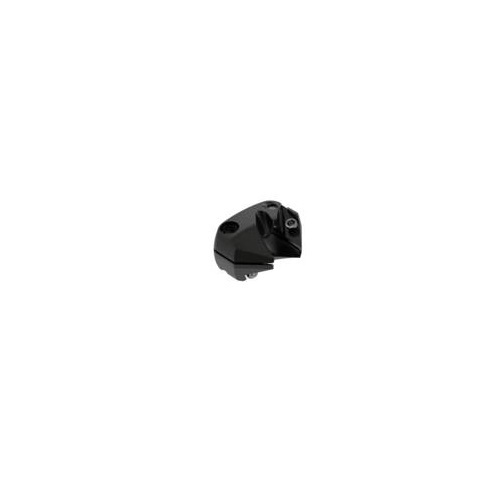

Crownloc™ Chamfer Module

  • 45 degrees tool cutting edge angle.
  • 19mm overall length.

Drill Depth:

SD101
(min-max)
mm
SD103
(min-max)
mm
SD105
(min-max)
mm
SD107
(min-max)
mm
12 13 12 28 28 53 53 78
12 14 12 29 29 54 54 79
13 14 13 29 29 54 54 79
14 20 14 40 40 70 70 100
14 21 14 41 41 71 71 101
15 22 15 42 42 72 72 102
16 25 16 51 51 87 87 123
17 26 17 52 52 88 88 124
18 27 18 53 53 89 89 125


About Crownloc™

  • Crownloc™ is a range of exchangeable tip drills designed to offer high quality holes at a lower cost.
  • Matching the quality of high precision drills, Crownloc uses replaceable crowns to eliminate the need for and cost of regrinding.
  • This guarantees consistently higher performance and tool life while also reducing the number of drills required in inventory.
  • Crownloc features a unique clamping design with a precision-ground interface of interlocking V-grooves to allow high cutting speeds and ensure rigidity and exact repeatability of positioning of each crown.
  • Long land margins provide excellent guidance to ensure high hole quality and self-centering geometry eliminates the need for center drilling operations.
  • Double coolant holes through the crown permit a high volume of coolant to reach the cutting edges.
  • The result is safer chip evacuation and longer tool life.

Specifications

  • AIMS SKU A0113859
  • Brand Seco
  • Model Number 00014922
  • Barcode Number 14922000000107
  • Net Weight (kg) 0.024
  • Designation SD100-C45-12.00/12.49

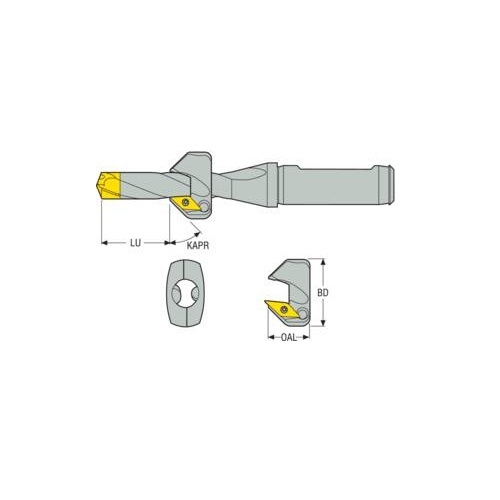

  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Overall Length (OAL) mm 19
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Body Diameter (BD) X Cutting Depth Max (mm) 28 x 1.5
  • Drill Depth Usable Length SD101 (LUN1-LUX1) mm 12-13
  • Drill Depth Usable Length SD103 (LUN2-LUX2) mm 12-28
  • Drill Depth Usable Length SD105 (LUN3-LUX3) mm 28-53
  • Drill Depth Usable Length SD107 (LUN4-LUX4) mm 53-78
  • Type Crownloc™ Chamfer Module
SKU: A0113859

Seco Crownloc™ Chamfer Module 28 x 1.5 x 12 - 13mm SD100-C45-12.00/12.49

Crownloc™ Chamfer Module

$387.06
RRP $446.60
SAVE $59.54 (13%)
