Seco Crownloc™ Crown K - Geometry 10.2 x 8.1 x 0.5mm Pack of 2 SD100-10.20-K

Crownloc™ Crown K - Geometry (Cast iron)

  • K geometry, first choice for drilling in cast iron.
  • The K geometry is designed for cast iron and features chamfered corners to reduce wear at high cutting speeds and eliminate “break out” at the exit of a hole.

About Crownloc™:

  • Crownloc™ is a range of exchangeable tip drills designed to offer high quality holes at a lower cost.
  • Matching the quality of high precision drills, Crownloc uses replaceable crowns to eliminate the need for and cost of regrinding.
  • This guarantees consistently higher performance and tool life while also reducing the number of drills required in inventory.
  • Crownloc features a unique clamping design with a precision-ground interface of interlocking V-grooves to allow high cutting speeds and ensure rigidity and exact repeatability of positioning of each crown.
  • Long land margins provide excellent guidance to ensure high hole quality and self-centering geometry eliminates the need for center drilling operations.
  • Double coolant holes through the crown permit a high volume of coolant to reach the cutting edges.
  • The result is safer chip evacuation and longer tool life.
  • Crownloc is available in a large range of optimized tip geometries for different applications and workpiece materials.
  • It reduces stress in the machined surface and minimizes burr creation at the hole’s exit by minimizing cutting forces, high heat generation and workpiece hardening.
  • Diameter range 10 - 25.99 mm (.393 - 1.023 inch).

Specifications

  • AIMS SKU A0113799
  • Brand Seco
  • Model Number 00090316
  • Barcode Number 90316000000203
  • Net Weight (kg) 0.006
  • Designation SD100-12.00-K

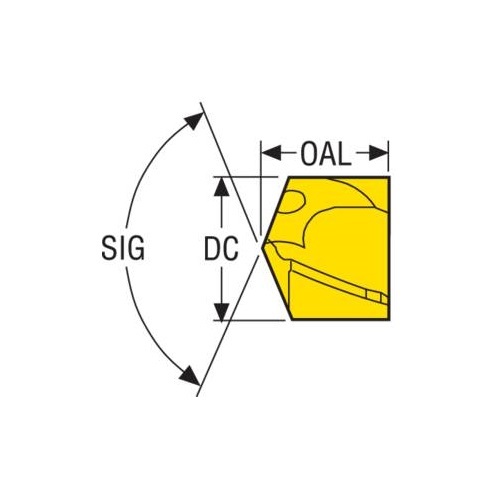

  • Cutting Diameter (DC) X Overall Length (OAL) mm 12 x 9.6
  • Corner Chamfer Width (CHW) mm 1
  • Corner Chamfer Angle (KCH) degrees 30.0°
  • Point Angle (SIG) degrees 140.0°
  • Type Crownloc™ Crown
  • Material Cast Iron
  • Grade Type Carbide PVD
  • Tip Geometry K-Geometry
SKU: A0113799

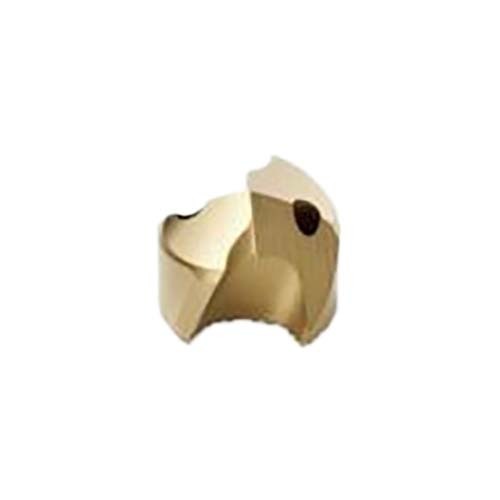

Seco Crownloc™ Crown K - Geometry 12 x 9.6 x 1mm SD100-12.00-K - Pack of 2

Crownloc™ Crown K - Geometry (Cast iron)

$308.88
