Specifications

AIMS SKU A0114125
Brand Seco
Model Number 02846078
Barcode Number 46078028000106
Net Weight (kg) 0.032

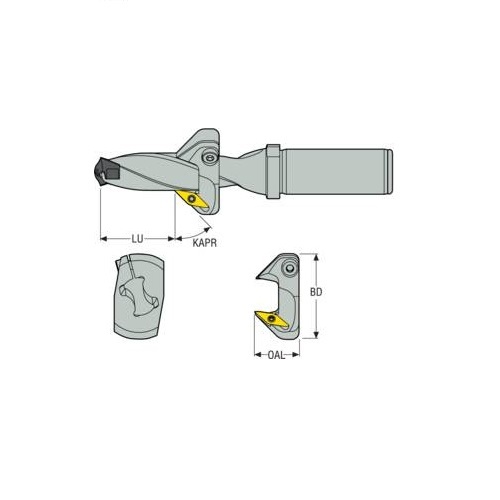

Designation SD400-C45-14.00/14.99
Tool Cutting Edge Angle (KAPR) 45.0 deg
Overall Length (OAL) mm 20
Peripheral Effective Cutting Edge Count (ZEFP) 2
Body Diameter (BD) X Cutting Depth Max (mm) 36 x 2
Drill Depth Usable Length SD403 (LUN1-LUX1) mm 7-33
Drill Depth Usable Length SD405 (LUN2-LUX2) mm 7-60
Drill Depth Usable Length SD408 (LUN3-LUX3) mm 60-105
• Type Crownloc™ Plus Chamfer Module
