Specifications

AIMS SKU A0114126
Brand Seco
Model Number 02846079
Barcode Number 46079028000103
Net Weight (kg) 0.033
Designation SD400-C45-15.00/15.99

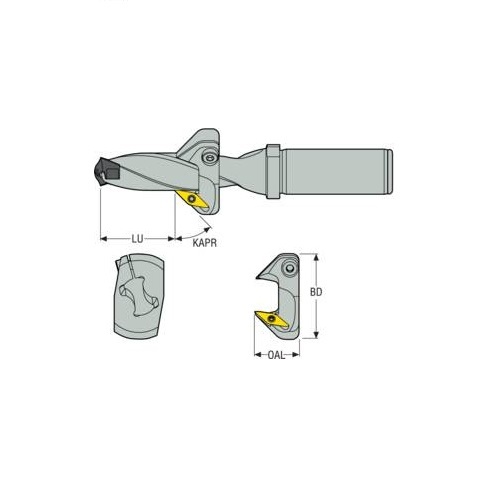

Tool Cutting Edge Angle (KAPR) 45.0 deg
Overall Length (OAL) mm 20
Peripheral Effective Cutting Edge Count (ZEFP) 2
Body Diameter (BD) X Cutting Depth Max (mm) 36 x 2
Drill Depth Usable Length SD403 (LUN1-LUX1) mm 8-35
Drill Depth Usable Length SD405 (LUN2-LUX2) mm 8-67
Drill Depth Usable Length SD408 (LUN3-LUX3) mm 67-114

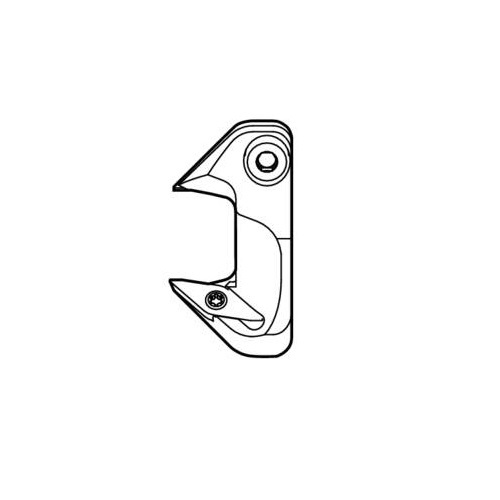

• Type Crownloc™ Plus Chamfer Module
