Description

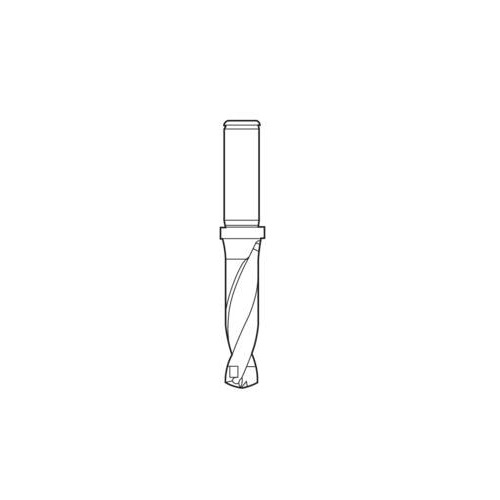

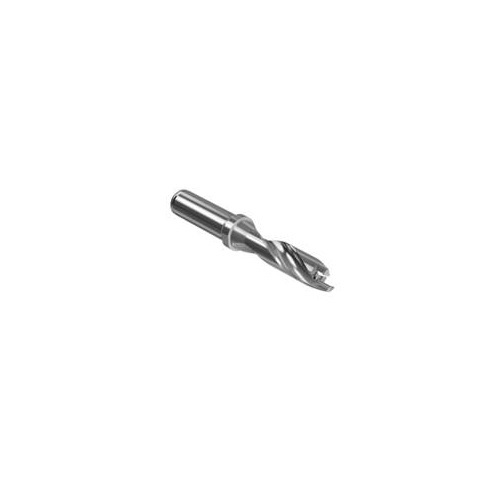

Seco Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill 106.2 x 15.88mm SD403-12.00/12.49-38-0625R1

Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill

  • Internal coolant.
  • Cylindrical shank (R1) fits holders: 5834 and 5672.

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface.
  • Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced centering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micro-grain substrate serve to increase the toughness and wear resistance while reducing the potential for edge build-up.
  • Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility, and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Specifications

  • AIMS SKU A0114139
  • Brand Seco
  • Model Number 02623542
  • Barcode Number 23542026000103
  • Net Weight (kg) 0.156
  • Designation SD403-15.00/15.99-48-0625R1
  • Shank Length (LS) mm 48
  • Usable Length (LU) mm 48
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Cutting Diameter Minimum (DCN) mm 15
  • Flange Diameter (DF) mm 20
  • Functional Length Secondary (LFS) mm 73.2
  • Shank Diameter (DMM) X Overall Length (OAL) mm 15.88 x 121.2
  • Cutting Diameter Maximum (DCX) mm 16
  • Usable Length Max (LUX) mm 58.2
  • Type Exchangeable Tip Drill
  • Shank Type Cylindrical

Video

SKU: A0114139

Seco Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill 121.2 x 15.88mm SD403-15.00/15.99-48-0625R1

Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill

$479.52
RRP $553.30
SAVE $73.78 (13%)
