Specifications
- AIMS SKU A0121416
- Brand Seco
- Model Number 00049535
- Barcode Number 49535000000204
- Type Snap-Tap® Thread Turning Insert
- Designation 16ELAG60-G1,CP500
- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 1.1
- Profile Distance Ex (PDX) mm 1.5
- Tooth Count (NT) 1
- Thread Pitch Maximum (TPX) mm 3
- Thread Pitch Minimum (TPN) mm 0.5
- Threads Per Inch Maximum (TPIX) 8
- Threads Per Inch Minimum (TPIN) 48
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 16.5
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Seat Size Code (SSC) 16
- Corner Radius (RE) mm 0.08
- Insert Thickness (S) mm 3.47
- Insert Hand (IH) Left
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121416

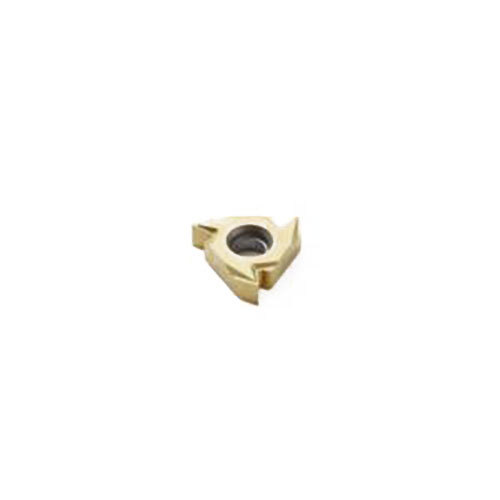

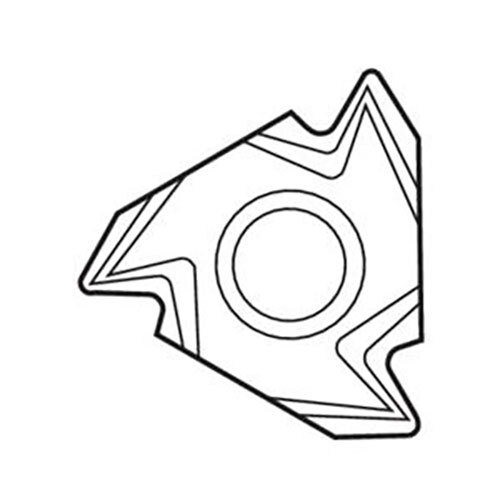

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Left 48-8 TPI CP500 V Profile 60° Thread-G1 16ELAG60-G1,CP500 Pack of 2
Thread Turning Insert 16EL - V Profile 60° Thread-G1 Gra
$83.13
