Description
Specifications
- AIMS SKU A0121418
- Brand Seco
- Model Number 00049673
- Barcode Number 49673000000203
- Type Snap-Tap® Thread Turning Insert
- Designation 16ER1.0ISO3M,CP500
- Thread Tolerance Class (TCTR) 3h/4h
- Profile Included Angle (PNA) deg 60.0 deg

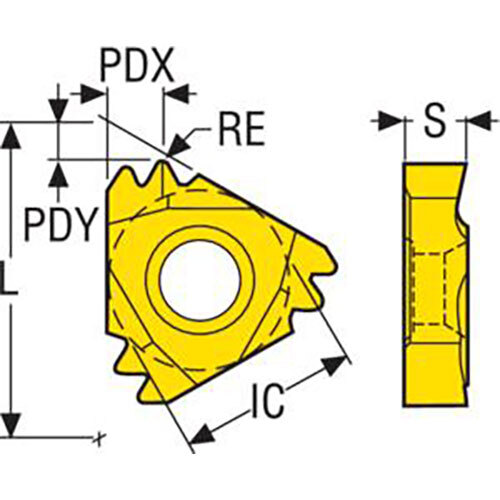

- Profile Distance Ey (PDY) mm 1.5
- Profile Distance Ex (PDX) mm 2.4
- Tooth Count (NT) 3
- Thread Pitch Maximum (TPX) mm 1
- Thread Pitch Minimum (TPN) mm 1
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 16.5
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Seat Size Code (SSC) 16
- Corner Radius (RE) mm 0.14
- Insert Thickness (S) mm 3.47
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121418

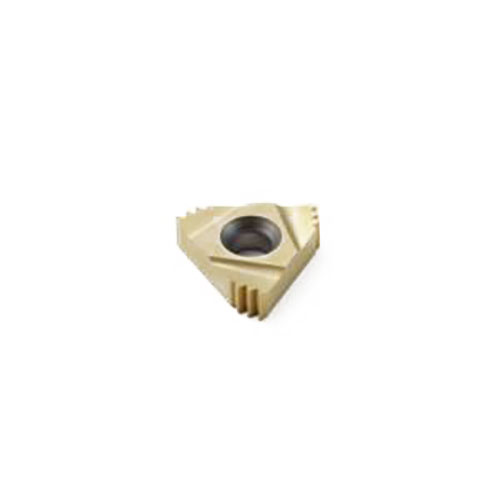

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 1-1 Thread Pitch CP500 ISO Thread 3 Teeth 16ER1.0ISO3M,CP500 Pack of 2
Thread Turning Insert 16ER - ISO Thread Grade-CP500 (3 T
$141.28
