Description
Specifications
- AIMS SKU A0121419
- Brand Seco
- Model Number 00011343
- Barcode Number 11343000000202
- Type Snap-Tap® Thread Turning Insert
- Designation 16ER12BUT-S31217,CP500
- Grade CP500
- Cutting Edge Count (CEDC) 3
- Insert Hand (IH) Right

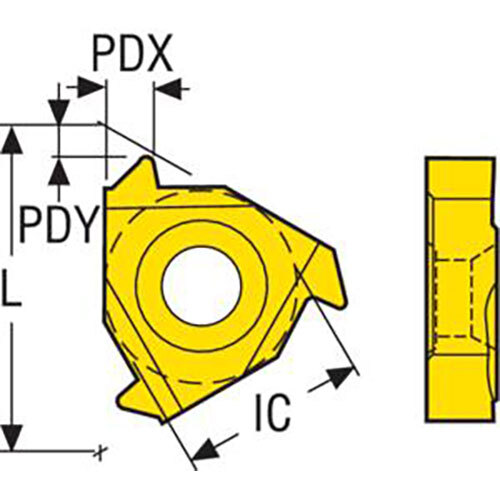

- Insert Thickness (S) mm 3.47
- Insert Seat Size Code (SSC) 16
- Inscribed Circle Diameter (IC) mm 9.53
- Theoretical Cutting Edge Length (L) mm 16.5
- Thread Type (TTP) External
- Threads Per Inch Minimum (TPIN) 12
- Threads Per Inch Maximum (TPIX) 12
- Tooth Count (NT) 1
- Profile Distance Ex (PDX) mm 1.3
- Profile Distance Ey (PDY) mm 2
SKU: A0121419

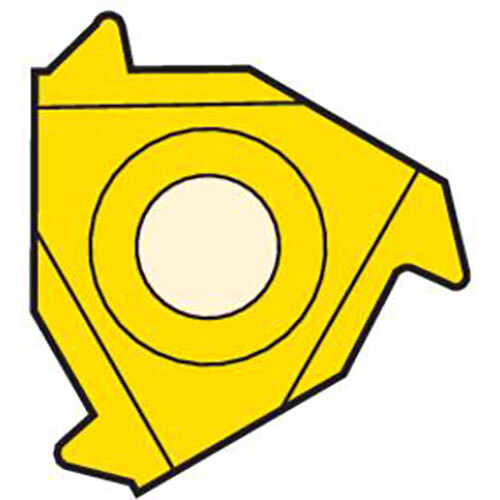

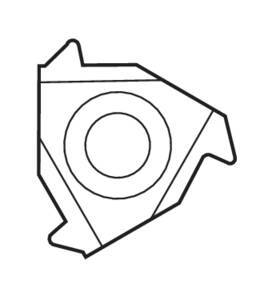

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 12-12 TPI CP500 Thread 16ER12BUT-S31217,CP500 Pack of 2
Thread Turning Insert 16ER - Thread Grade-CP500
$83.13
