Specifications
- AIMS SKU A0121421
- Brand Seco
- Model Number 00050076
- Barcode Number 50076000001007

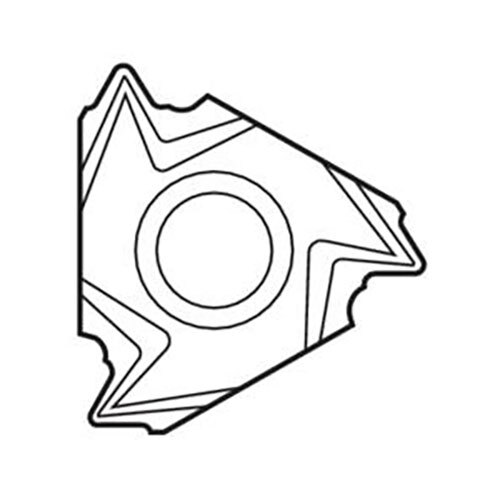

- Type Snap-Tap® Thread Turning Insert
- Designation 16ERA55-G1,CP500

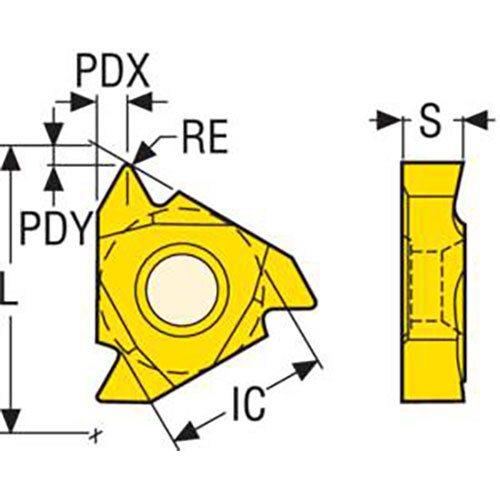

- Profile Included Angle (PNA) deg 55.0 deg
- Profile Distance Ey (PDY) mm 0.6
- Profile Distance Ex (PDX) mm 0.8
- Tooth Count (NT) 1
- Thread Pitch Maximum (TPX) mm 1.5
- Thread Pitch Minimum (TPN) mm 0.5
- Threads Per Inch Maximum (TPIX) 16
- Threads Per Inch Minimum (TPIN) 48
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 16.5
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Seat Size Code (SSC) 16
- Corner Radius (RE) mm 0.08
- Insert Thickness (S) mm 3.47
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121421

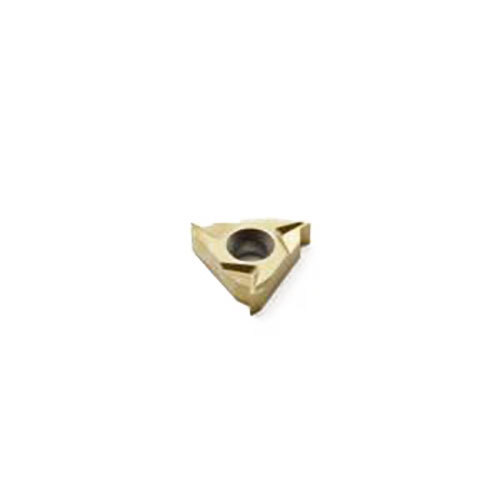

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 48-16 TPI CP500 V Profile 55° Thread-G1 16ERA55-G1,CP500 Pack of 10
Thread Turning Insert 16ER - V Profile 55° Thread-G1 Gra
$415.66
