Description
Specifications
- AIMS SKU A0121422
- Brand Seco
- Model Number 00049776
- Barcode Number 49776000000201
- Type Snap-Tap® Thread Turning Insert
- Designation 16ER11.5NPT-A1,CP500

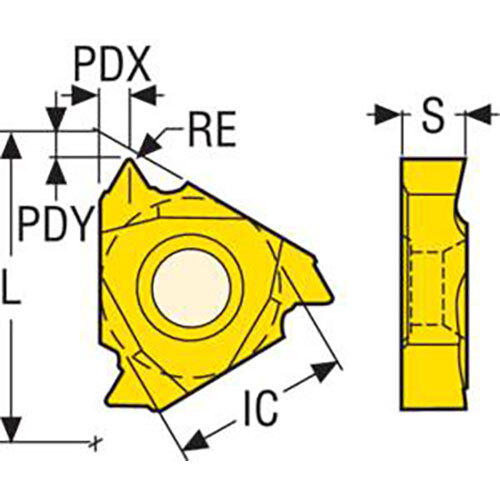

- Theoretical Cutting Edge Length (L) mm 16.5
- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 1.1
- Profile Distance Ex (PDX) mm 1.5
- Tooth Count (NT) 1
- Threads Per Inch Maximum (TPIX) 11.5
- Threads Per Inch Minimum (TPIN) 11.5
- Thread Type (TTP) External
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Seat Size Code (SSC) 16
- Corner Radius (RE) mm 0.09
- Insert Thickness (S) mm 3.47
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP500
SKU: A0121422

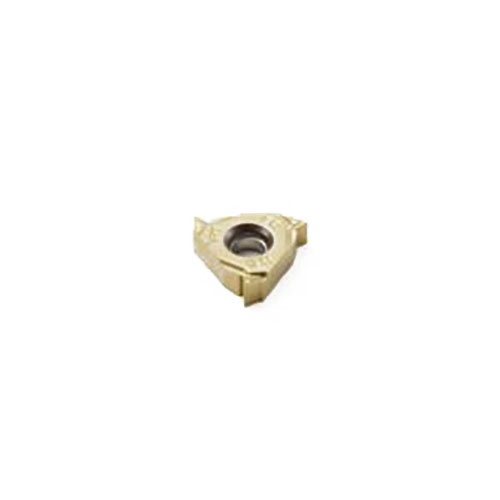

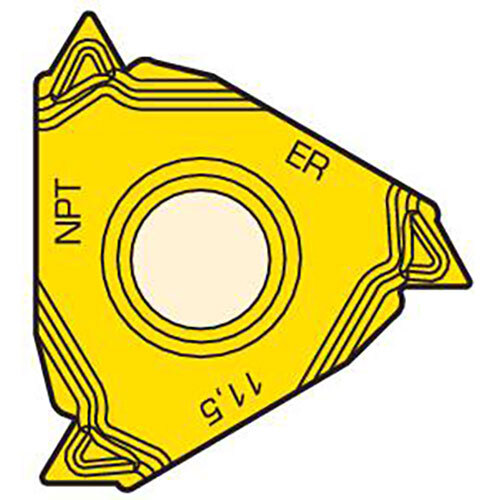

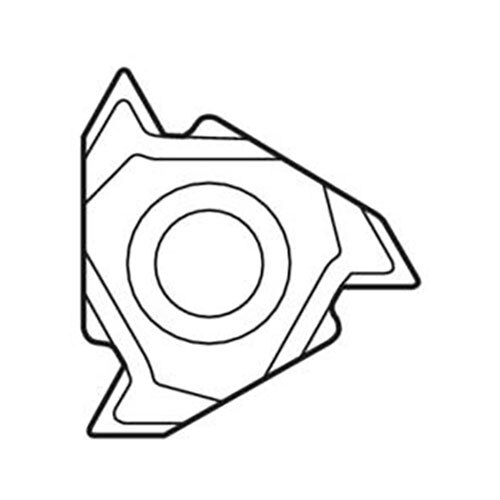

Seco External Snap-Tap Thread Turning Insert 3.47 x 16.5mm Right 11.5-11.5 TPI CP500 NPT Thread A1 Chipbreaker 16ER11.5NPT-A1,CP500 Pack of 2
Thread Turning Insert 16ER - Am. NPT Thread Grade-CP500
$74.93
