Specifications
- AIMS SKU A0121488
- Brand Seco
- Model Number 74027544
- Barcode Number 27544740000205
- Type Snap-Tap® Thread Turning Insert
- Designation 16ERAG55,H15
- Profile Included Angle (PNA) deg 55.0 deg
- Profile Distance Ey (PDY) mm 1.1
- Profile Distance Ex (PDX) mm 1.5
- Tooth Count (NT) 1
- Thread Pitch Maximum (TPX) mm 3
- Thread Pitch Minimum (TPN) mm 0.5
- Threads Per Inch Maximum (TPIX) 8
- Threads Per Inch Minimum (TPIN) 48
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 16.5
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Seat Size Code (SSC) 16
- Corner Radius (RE) mm 0.08
- Insert Thickness (S) mm 3.47
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP300
SKU: A0121488

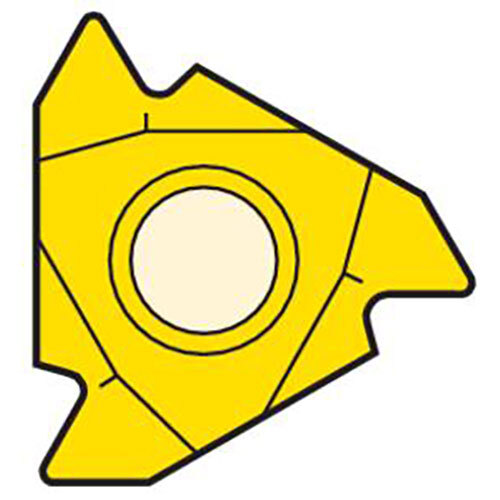

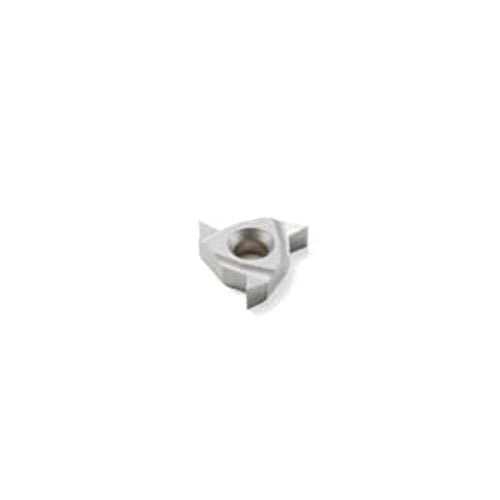

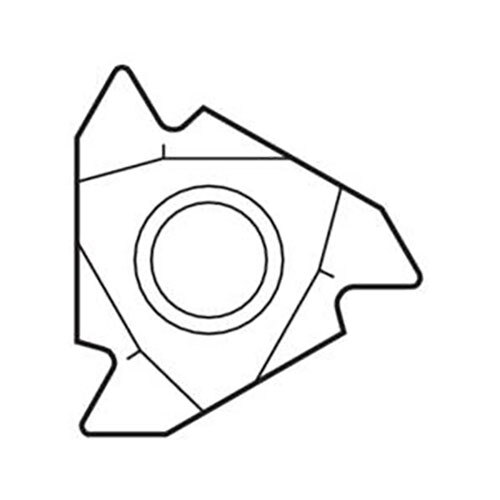

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 48-8 TPI H15 V Profile 55° Thread 16ERAG55,H15 Pack of 2
Thread Turning Insert 16ER - V Profile 55° Thread Grade-
$69.60
