Description
Specifications
- AIMS SKU A0121378
- Brand Seco
- Model Number 00076292
- Barcode Number 76292000000200
- Type Snap-Tap® Thread Turning Insert
- Designation 22ERN60,CP200

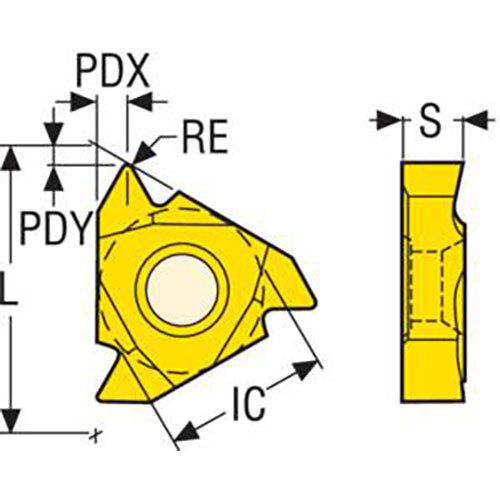

- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 1.8
- Profile Distance Ex (PDX) mm 2.5
- Tooth Count (NT) 1
- Thread Pitch Maximum (TPX) mm 5
- Thread Pitch Minimum (TPN) mm 3.5
- Threads Per Inch Maximum (TPIX) 5
- Threads Per Inch Minimum (TPIN) 7
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.4
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121378

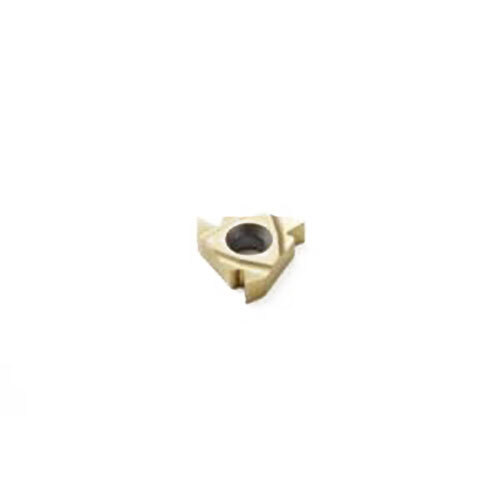

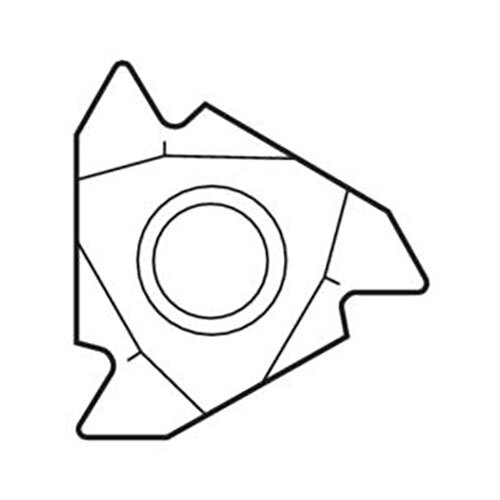

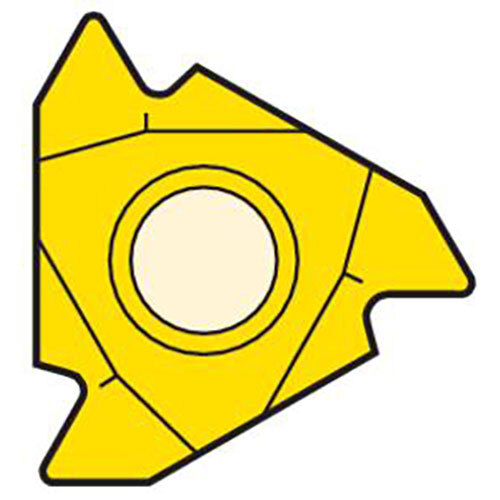

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Right 7-5 TPI CP200 V Profile 60° Thread 22ERN60,CP200 Pack of 2
Thread Turning Insert 22ER - V Profile 60° Thread Grade-
$132.89
