Description
Specifications
- AIMS SKU A0121436
- Brand Seco
- Model Number 00064837
- Barcode Number 64837000000208
- Type Snap-Tap® Thread Turning Insert
- Designation 22EL6RD,CP500
- Thread Tolerance Class (TCTR) 7h/6h
- Profile Included Angle (PNA) deg 30.0 deg
- Profile Distance Ey (PDY) mm 2
- Profile Distance Ex (PDX) mm 2.5
- Tooth Count (NT) 1
- Threads Per Inch Maximum (TPIX) 6
- Threads Per Inch Minimum (TPIN) 6
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.97
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Left
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121436

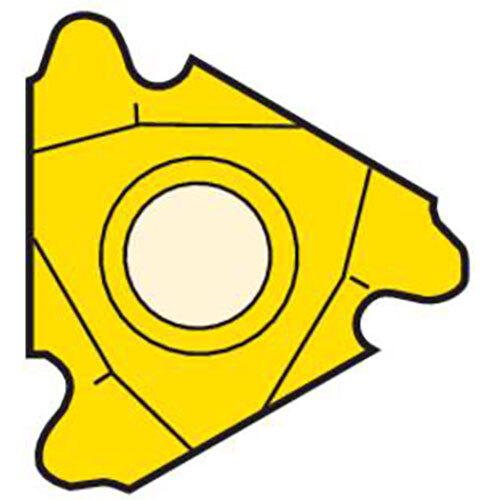

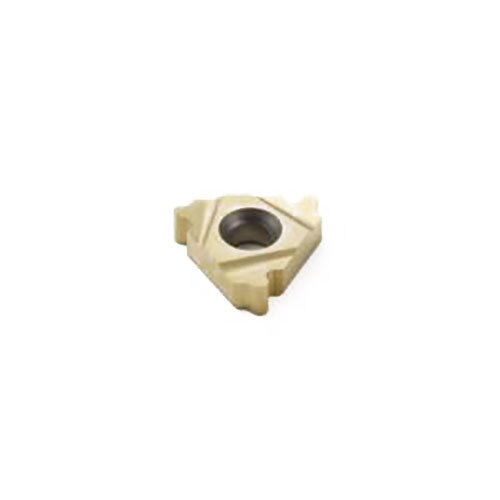

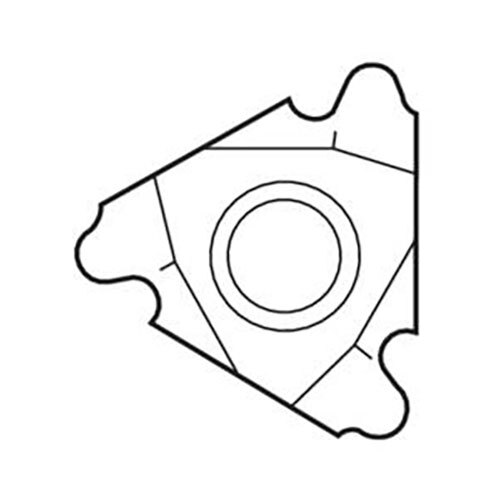

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Left 6-6 TPI CP500 RD Thread 22EL6RD,CP500 Pack of 2
Thread Turning Insert 22EL - Round-DIN405 Thread Grade-C
$132.89
