Specifications
- AIMS SKU A0121437
- Brand Seco
- Model Number 00064856
- Barcode Number 64856000000209
- Type Snap-Tap® Thread Turning Insert
- Designation 22EL6STACME,CP500
- Thread Tolerance Class (TCTR) 2G
- Profile Included Angle (PNA) deg 29.0 deg

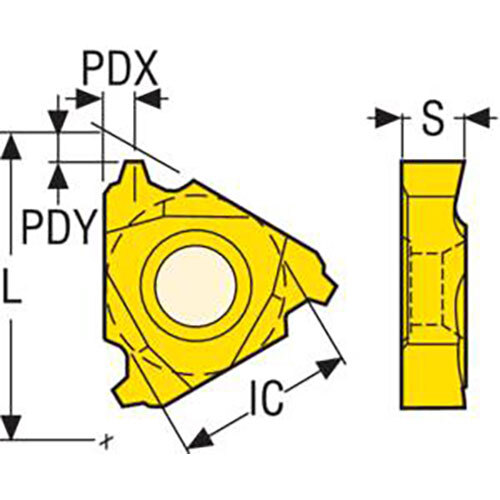

- Profile Distance Ey (PDY) mm 2.4
- Profile Distance Ex (PDX) mm 2.5
- Tooth Count (NT) 1
- Threads Per Inch Maximum (TPIX) 6
- Threads Per Inch Minimum (TPIN) 6
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Left
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121437

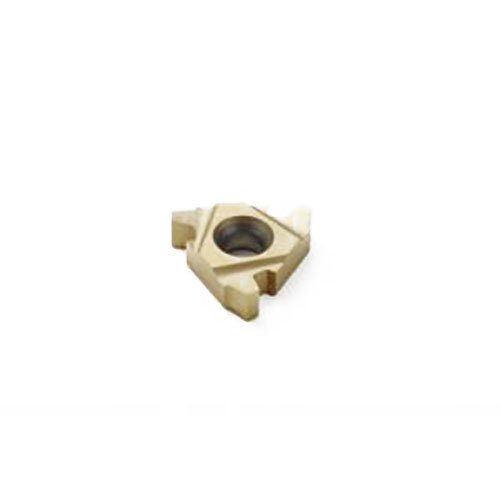

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Left 6-6 TPI CP500 STACME Thread 22EL6STACME,CP500 Pack of 2
Thread Turning Insert 22EL - Stub-ACME Thread Grade-CP50
$166.27
