Description
Specifications
- AIMS SKU A0121440
- Brand Seco
- Model Number 00077888
- Barcode Number 77888000000204
- Type Snap-Tap® Thread Turning Insert
- Designation 22ER16UN3M,CP500
- Thread Tolerance Class (TCTR) 3A
- Profile Included Angle (PNA) deg 60.0 deg

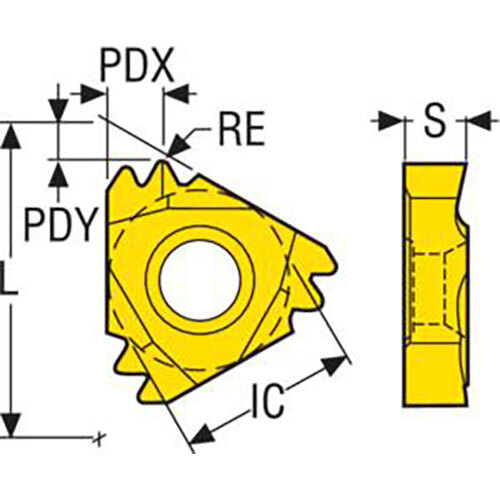

- Profile Distance Ey (PDY) mm 2.5
- Profile Distance Ex (PDX) mm 4
- Tooth Count (NT) 3
- Threads Per Inch Maximum (TPIX) 16
- Threads Per Inch Minimum (TPIN) 16
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.21
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121440

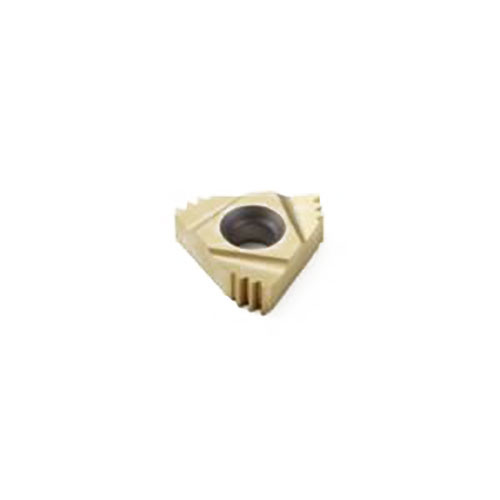

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Right 16-16 TPI CP500 UN Thread 3 Teeth 22ER16UN3M,CP500 Pack of 2
Thread Turning Insert 22ER - Am. UN Thread Grade-CP500 (
$261.22
