Description
Specifications
- AIMS SKU A0121442
- Brand Seco
- Model Number 00064937
- Barcode Number 64937000000205
- Type Snap-Tap® Thread Turning Insert
- Designation 22ER11.5NPT2M,CP500

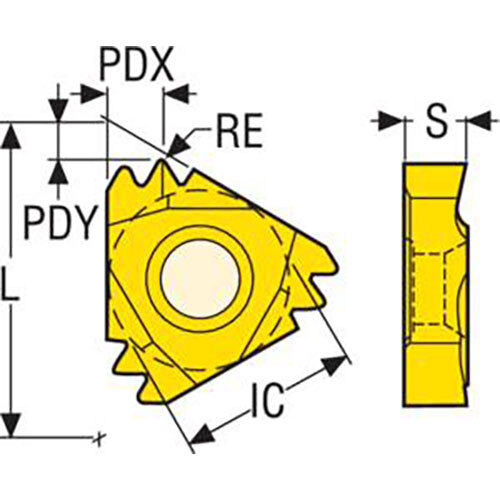

- Theoretical Cutting Edge Length (L) mm 22
- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 2.1
- Profile Distance Ex (PDX) mm 3.3
- Tooth Count (NT) 2
- Threads Per Inch Maximum (TPIX) 11.5
- Threads Per Inch Minimum (TPIN) 11.5
- Thread Type (TTP) External
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.07
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121442

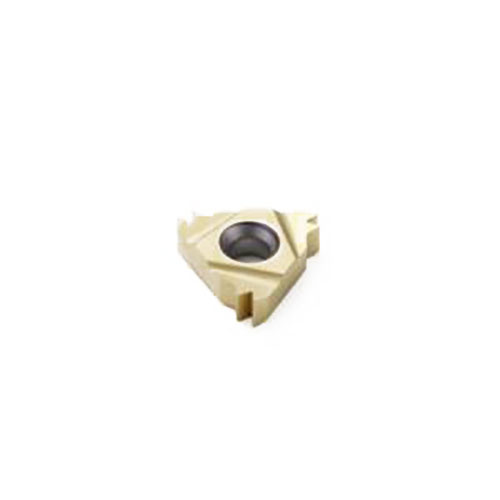

Seco External Snap-Tap Thread Turning Insert 4.71 x 22mm Right 11.5-11.5 TPI CP500 NPT Thread 2 Teeth 22ER11.5NPT2M,CP500 Pack of 2
Thread Turning Insert 22ER - NPT Thread Grade-CP500 (2 T
$204.02
