Description
Specifications
- AIMS SKU A0121444
- Brand Seco
- Model Number 00064943
- Barcode Number 64943000000206

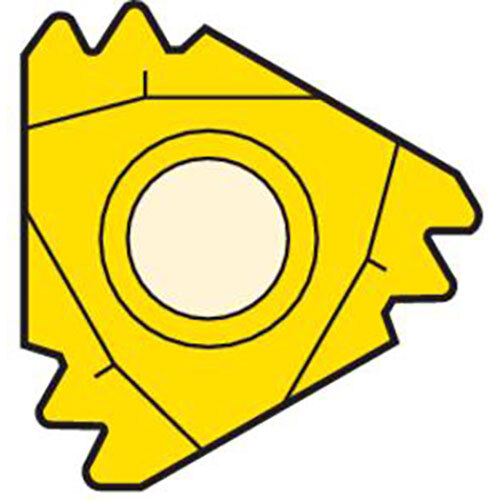

- Type Snap-Tap® Thread Turning Insert
- Designation 22ER12UN2M,CP500
- Thread Tolerance Class (TCTR) 3A
- Profile Included Angle (PNA) deg 60.0 deg

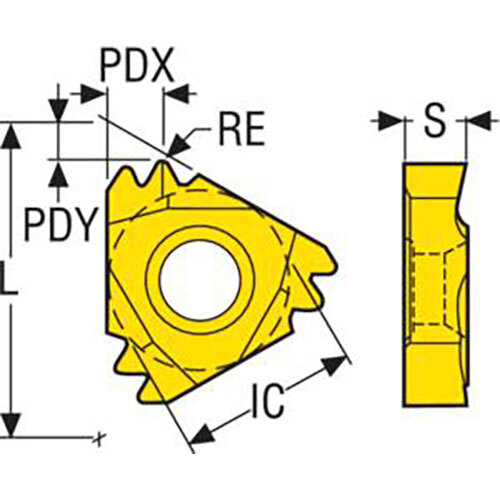

- Profile Distance Ey (PDY) mm 2
- Profile Distance Ex (PDX) mm 3.1
- Tooth Count (NT) 2
- Threads Per Inch Maximum (TPIX) 12
- Threads Per Inch Minimum (TPIN) 12
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.26
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121444
Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Right 12-12 TPI CP500 UN Thread 2 Teeth 22ER12UN2M,CP500 Pack of 2
Thread Turning Insert 22ER - Am. UN Thread Grade-CP500 (
$204.02
