Description
Specifications
- AIMS SKU A0121445
- Brand Seco
- Model Number 00065002
- Barcode Number 65002000000209
- Type Snap-Tap® Thread Turning Insert
- Designation 22ER2.0ISO2M,CP500
- Thread Tolerance Class (TCTR) 3h/4h

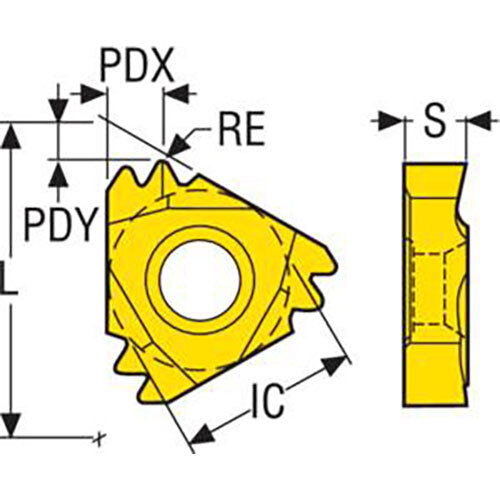

- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 2
- Profile Distance Ex (PDX) mm 2.9
- Tooth Count (NT) 2
- Thread Pitch Maximum (TPX) mm 2
- Thread Pitch Minimum (TPN) mm 2
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.29
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121445

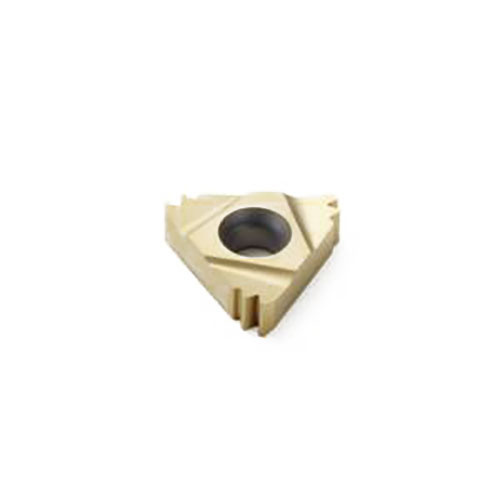

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Right 2-2 Thread Pitch CP500 ISO Thread 2 Teeth 22ER2.0ISO2M,CP500 Pack of 2
Thread Turning Insert 22ER - ISO Thread Grade-CP500 (2 T
$204.02
