Description
Specifications
- AIMS SKU A0121447
- Brand Seco
- Model Number 02545363
- Barcode Number 45363025001005
- Type Snap-Tap® Thread Turning Insert
- Designation 22ER6HEF,CP500

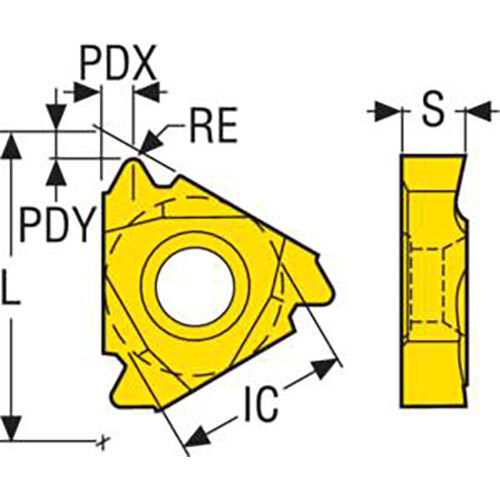

- Taper Gradient Taper Per Foot (TPF) 2
- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 2
- Profile Distance Ex (PDX) mm 2.5
- Tooth Count (NT) 1
- Threads Per Inch Maximum (TPIX) 6
- Threads Per Inch Minimum (TPIN) 6
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 22
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Seat Size Code (SSC) 22
- Corner Radius (RE) mm 0.38
- Insert Thickness (S) mm 4.71
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121447

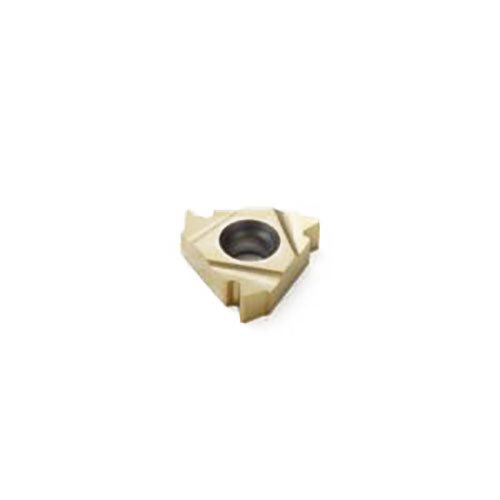

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Right 6-6 TPI CP500 Hughes External Flush Thread 22ER6HEF,CP500 Pack of 10
Thread Turning Insert 22ER - HEF Thread Grade-CP500
$831.30
