Description
Specifications
- AIMS SKU A0121472
- Brand Seco
- Model Number 00073176
- Barcode Number 73176000000206

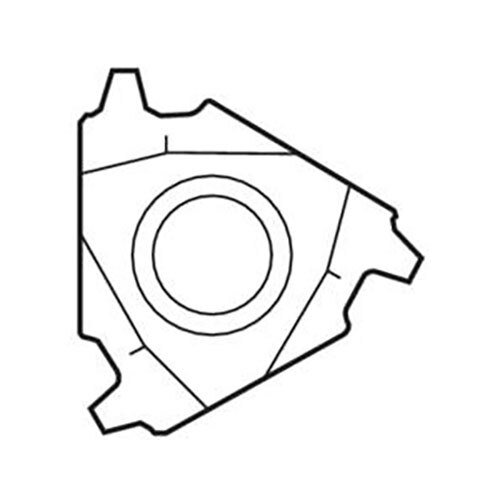

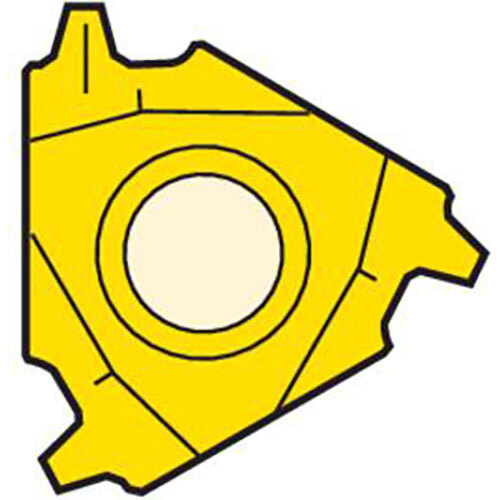

- Type Snap-Tap® Thread Turning Insert
- Designation 27ER4ACME,CP500
- Thread Tolerance Class (TCTR) 3G
- Profile Included Angle (PNA) deg 29.0 deg

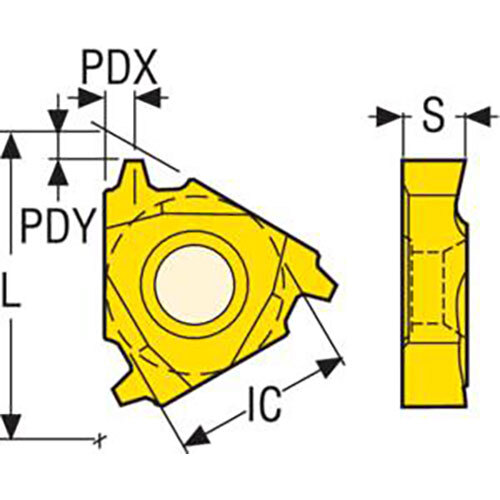

- Profile Distance Ey (PDY) mm 2.5
- Profile Distance Ex (PDX) mm 3
- Tooth Count (NT) 1
- Threads Per Inch Maximum (TPIX) 4
- Threads Per Inch Minimum (TPIN) 4
- Thread Type (TTP) External
- Theoretical Cutting Edge Length (L) mm 27
- Inscribed Circle Diameter (IC) mm 15.88
- Insert Seat Size Code (SSC) 27
- Insert Thickness (S) mm 6.15
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121472

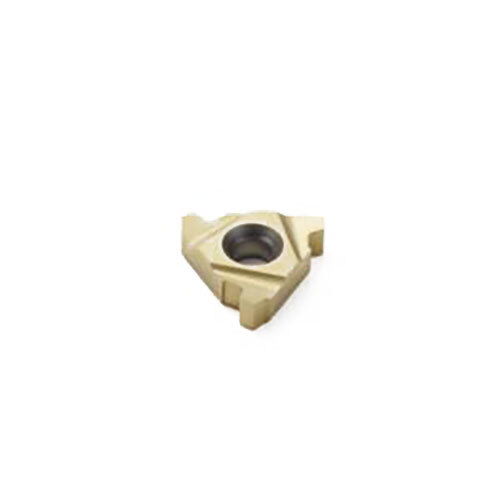

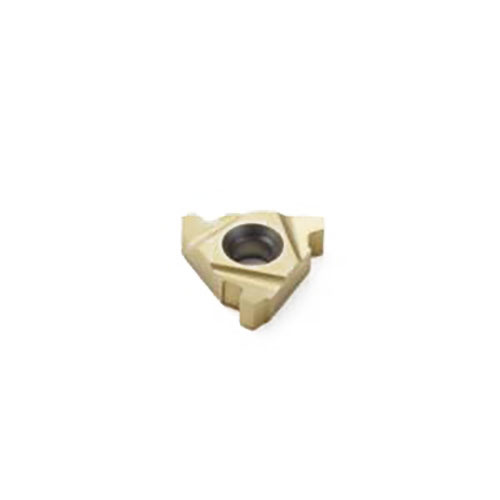

Seco External Snap-Tap Thread Turning Insert 6.15 x 27mm 27ER4ACME - Pack of 2
Thread Turning Insert 27ER - Am. ACME-G Thread Grade-CP5
$242.14
