Description
Specifications
- AIMS SKU A0121473
- Brand Seco
- Model Number 02409259
- Barcode Number 9259024000201
- Designation 27ER4PAC,CP500
- Type Snap-Tap® Thread Turning Insert

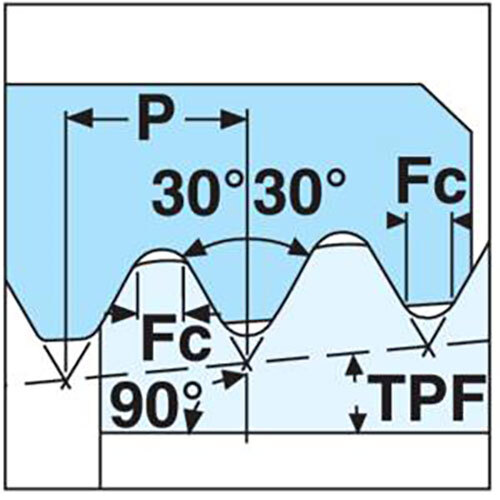

- Thread Type (TTP) External
- Taper Gradient Taper Per Foot (TPF) 1.5
- Thread Tolerance Class (TCTR) API spec 7 2007
- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 2.8
- Profile Distance Ex (PDX) mm 3.2
- Tooth Count (NT) 1
- Cutting Top Face (ctf) 1.9
- Threads Per Inch Maximum (TPIX) 4
- Threads Per Inch Minimum (TPIN) 4
- Theoretical Cutting Edge Length (L) mm 27
- Inscribed Circle Diameter (IC) mm 15.88
- Insert Seat Size Code (SSC) 27
- Insert Thickness (S) mm 6.15
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121473

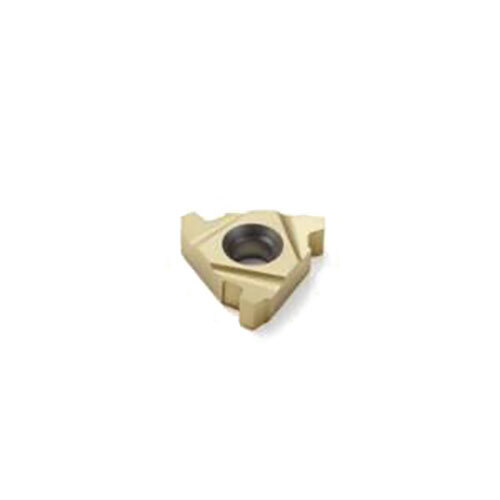

Seco External Snap-Tap® Thread Turning Insert 6.15 x 27mm Right 4-4 TPI CP500 PAC Thread 27ER4PAC,CP500 Pack of 2
Thread Turning Insert 27ER - PAC Thread Grade-CP500
$242.14
