Description

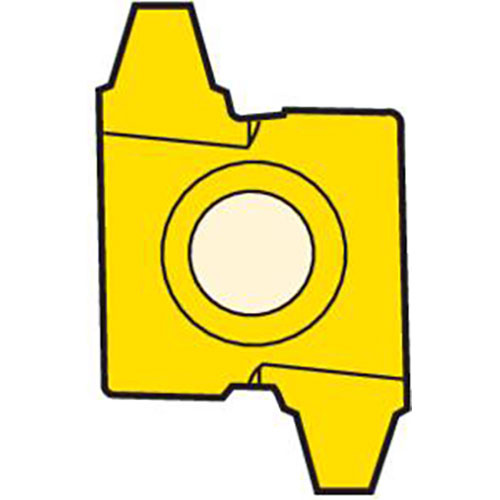

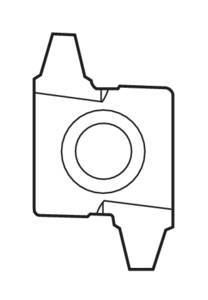

Seco External Snap-Tap Thread Turning Insert 7.88 x 26mm Right 2-2 TPI CP500 STACME Thread 26ER2STACME,CP500

Thread Turning Insert 26ER - Stub-ACME Thread Grade-CP500

  • 26mm cutting edge length.
  • External, right-cutting direction.
  • STACME thread, Stub-ACME.
  • Partial profile insert, motion-transmitting threads.

CP500 Grade

  • Universal very tough micro-grain grade for all types of threading in most materials.
  • Excellent for stainless steel and difficult operations.
  • (Ti, Al)N + TiN.

About Seco Thread Turning

  • Our comprehensive selection of thread-turning solutions for internal and external applications make it possible to produce high-quality threads in all sizes and profiles.
  • From direct-pressed single-point inserts to innovative tool holders to intuitive software, we have everything you need to increase your productivity and profits.
  • To help take the guesswork out of threading operations, our Thread Turning Wizard software eliminates complicated programs and calculations.
  • Requiring minimal input, the Wizard selects the best holder and inserts for the application, identifies the best operating parameters, and then downloads the information to the machine tool's CNC.

About Seco Snap-Tap Threading System

  • We use advanced manufacturing processes to produce the precision cutting edges on our Snap-Tap thread-turning tools.
  • The process eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice.
  • Pair these tools with our Anti-Twist Toolholders and solid suggestions from our Thread Tuning Wizard software and there's no thread-turning application you can't handle.
  • Our popular range of Snap-Tap thread turning tools is available in three insert chip breaker geometries for the successful machining of steel and stainless steel.
  • While each geometry serves a unique purpose, they all feature the CP500 grade that features a highly wear-resistant PVD coating to provide dependable machining for a large majority of common thread turning applications.
  • The innovative tool holders made for use with Snap-Tap inserts offer the best possible holding power available for long tool life and high accuracy.
  • They employ an Anti-Twist insert locking system that features a carbide pin in the back of the insert pocket that resists wear and prevents the insert from turning or twisting under pressure during machining.
  • For added insert and tool holder rigidity, a D-style clamp securely pulls the insert down and into the pocket.

Specifications

  • AIMS SKU A0121465
  • Brand Seco
  • Model Number 00073122
  • Barcode Number 73122000000203
  • Type Snap-Tap® Thread Turning Insert
  • Designation 26ER2STACME,CP500
  • Thread Tolerance Class (TCTR) 2G

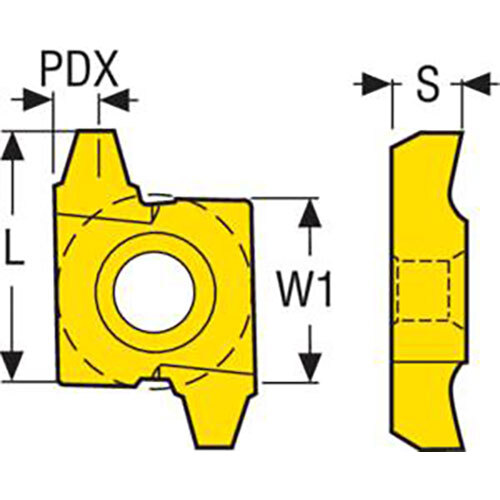

  • Profile Included Angle (PNA) deg 29.0 deg
  • Profile Distance Ex (PDX) mm 5
  • Tooth Count (NT) 1
  • Insert Gauge Length (IGL) mm 26
  • Threads Per Inch Maximum (TPIX) 2
  • Threads Per Inch Minimum (TPIN) 2
  • Thread Type (TTP) External
  • Insert Width (w1) Mm 15.9
  • Theoretical Cutting Edge Length (L) mm 26
  • Insert Seat Size Code (SSC) 26
  • Insert Thickness (S) mm 7.88
  • Insert Hand (IH) Right
  • Cutting Edge Count (CEDC) 2
  • Grade CP500
SKU: A0121465

Seco External Snap-Tap Thread Turning Insert 7.88 x 26mm Right 2-2 TPI CP500 STACME Thread 26ER2STACME,CP500 Pack of 2

Thread Turning Insert 26ER Stub-ACME Thread Grade-CP500

$396.58
