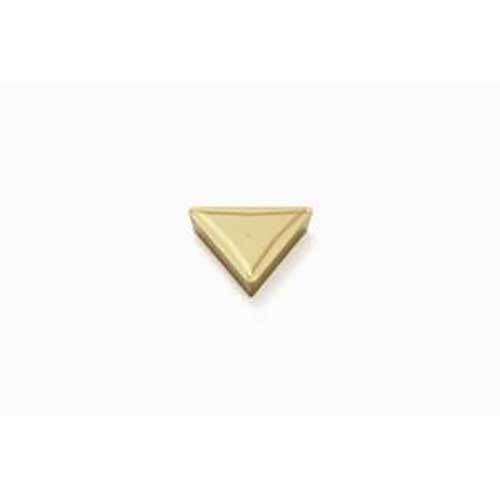

Seco General Turning Insert 0.8 x 3.18 x 11mm CP500 Grade Neutral F2 Chipbreaker (TPMR) TPMR110308-F2,CP500 Pack of 10

Turning Insert CP500 Grade (TPMR)

  • CP500 grade.
  • T, Insert Shape Code (SC).
  • 11, Insert Seat Size Code (SSC).

About CP500 Grade

  • Carbide PVD.
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
  • Especially suitable in intermittent cuts.
  • (Ti, Al)N + TiN.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0122014
  • Brand Seco
  • Model Number 00092436
  • Barcode Number 92436000001005
  • Type Turning Insert
  • Designation TPMR110308-F2,CP500
  • Grade CP500
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Neutral

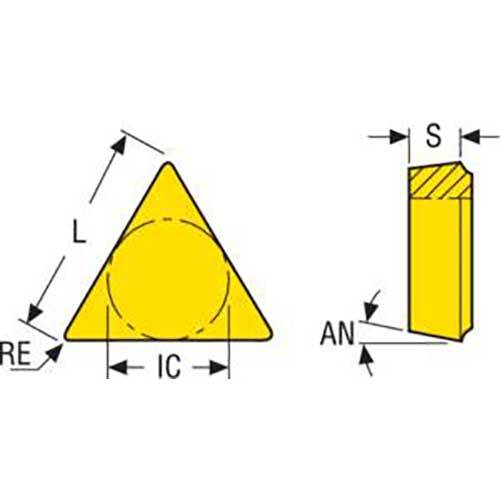

  • Cutting Edge Effective Length (LE) mm 10.2
  • Insert Thickness (S) mm 3.18
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 11
  • Insert Shape Code (SC) T
  • Inscribed Circle Diameter (IC) mm 6.35
  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Theoretical Cutting Edge Length (L) mm 11
SKU: A0122014

Seco General Turning Insert 0.8 x 3.18 x 11mm CP500 Grade Neutral F2 Chipbreaker (TPMR) TPMR110308-F2,CP500 Pack of 10

Turning Insert CP500 Grade (TPMR)

$143.00
