Specifications
- AIMS SKU A0121910
- Brand Seco
- Model Number 00003860
- Barcode Number 3860000001004
- Type Turning Insert
- Designation SPGN120308,883
- Grade 883
- Grade Type Carbide Uncoated
- Cutting Edge Count (CEDC) 4
- Insert Hand (IH) Neutral

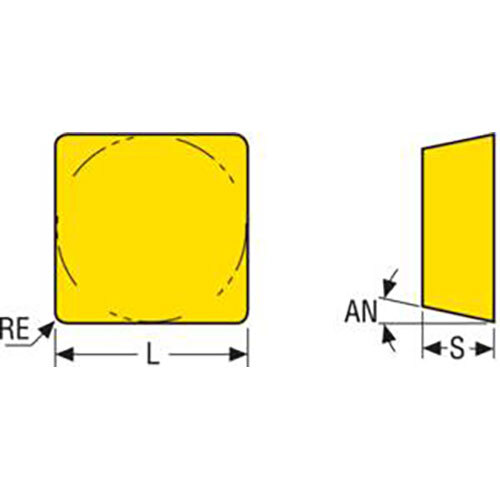

- Cutting Edge Effective Length (LE) mm 11.2
- Insert Thickness (S) mm 3.18
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) 12
- Insert Shape Code (SC) S
- Inscribed Circle Diameter (IC) mm 12.7
- Clearance Angle Major (an) Deg 11.0 deg
- Insert Included Angle (epsr) Deg 90.0 deg
- Theoretical Cutting Edge Length (L) mm 12.7
SKU: A0121910

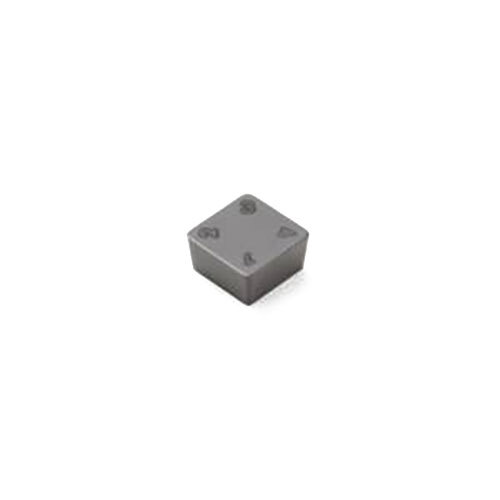

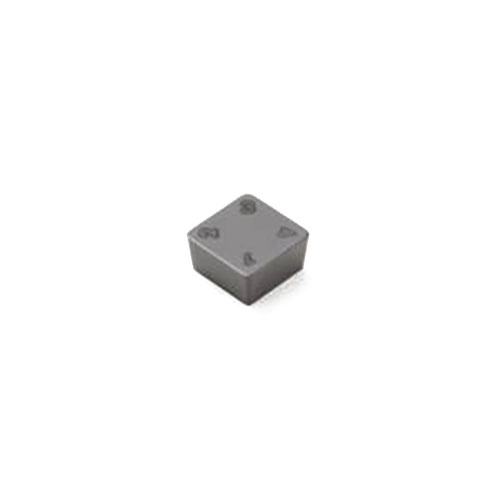

Seco General Turning Insert 0.8 x 3.18 x 12.7mm 883 Grade Neutral (SPGN) SPGN120308,883 Pack of 10
Turning Insert 883 Grade (SPGN)
$248.82
