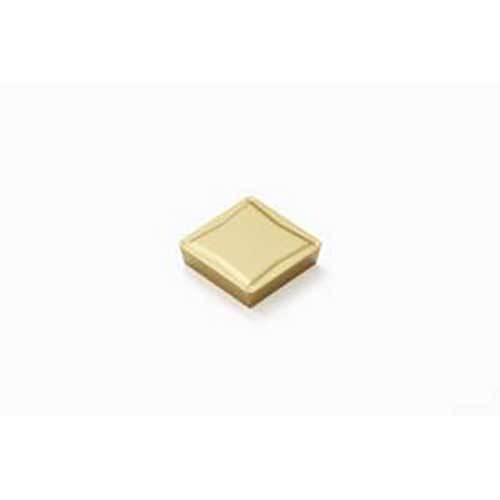

Seco General Turning Insert 0.8 x 3.18 x 12.7mm TP40 Grade Neutral F2 Chipbreaker (SPMR) SPMR120308-F2,TP40 Pack of 10

Turning Insert TP40 Grade (SPMR)

  • TP40 grade.
  • S, Insert Shape Code (SC).
  • 12, Insert Seat Size Code (SSC).

About TP40 Grade

  • Carbide CVD.
  • The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
  • TiC/Ti(C,N) + TiN.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0122000
  • Brand Seco
  • Model Number 74026087
  • Barcode Number 26087740001007
  • Type Turning Insert
  • Designation SPMR120308-F2,TP40
  • Grade TP40
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 4
  • Insert Hand (IH) Neutral

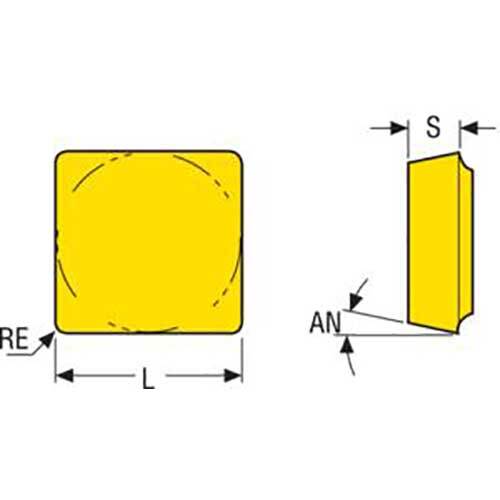

  • Cutting Edge Effective Length (LE) mm 11.9
  • Insert Thickness (S) mm 3.18
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 12
  • Insert Shape Code (SC) S
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Included Angle (epsr) Deg 90.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.7
SKU: A0122000

Seco General Turning Insert 0.8 x 3.18 x 12.7mm TP40 Grade Neutral F2 Chipbreaker (SPMR) SPMR120308-F2,TP40 Pack of 10

Turning Insert TP40 Grade (SPMR)

$220.22
