Specifications
- AIMS SKU A0121913
- Brand Seco
- Model Number 00004390
- Barcode Number 4390000001005
- Type Turning Insert
- Designation SPMM120408-46,883
- Grade 883
- Grade Type Carbide Uncoated
- Cutting Edge Count (CEDC) 4
- Insert Hand (IH) Neutral

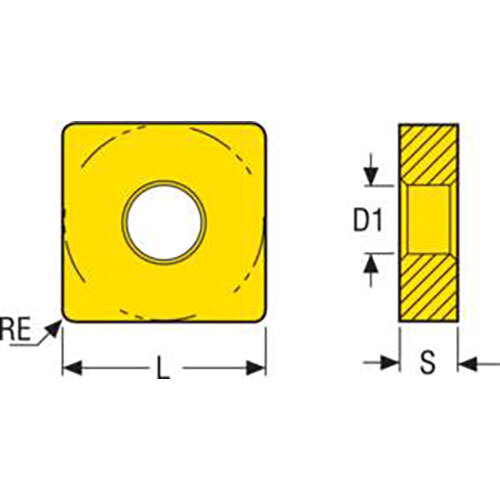

- Cutting Edge Effective Length (LE) mm 11.2
- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) 12
- Insert Shape Code (SC) S
- Inscribed Circle Diameter (IC) mm 12.7
- Clearance Angle Major (an) Deg 11.0 deg
- Insert Included Angle (epsr) Deg 90.0 deg
- Theoretical Cutting Edge Length (L) mm 12.7
SKU: A0121913
Seco General Turning Insert 0.8 x 4.76 x 12.7mm 883 Grade Neutral (SPMM) SPMM120408-46,883 Pack of 10
Turning Insert 883 Grade (SPMM)
$204.96
