Specifications
- AIMS SKU A0121888
- Brand Seco
- Model Number 74079736
- Barcode Number 79736740001006
- Type Milling Insert
- Designation 218.19-160T-04-M08,F25M
- Grade F25M
- Grade Type Carbide PVD
- Cutting Edge Count (CEDC) 3
- Insert Hand (IH) Both
- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 1.2
- Insert Seat Size Code (SSC) 218.19-160
- Inscribed Circle Diameter (IC) mm 11.18
- Clearance Angle Major (an) Deg 12.0 deg
- Curved Cutting Edge Radius (CCER) mm 16
SKU: A0121888

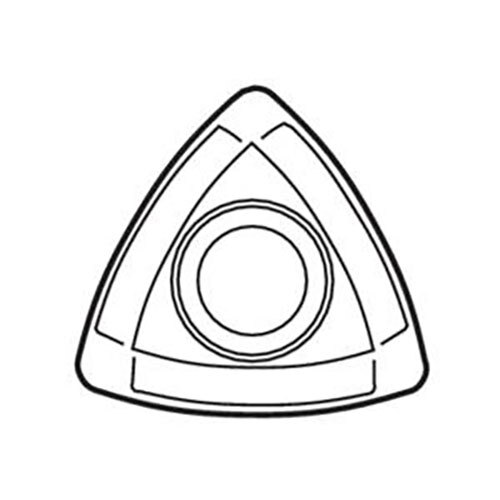

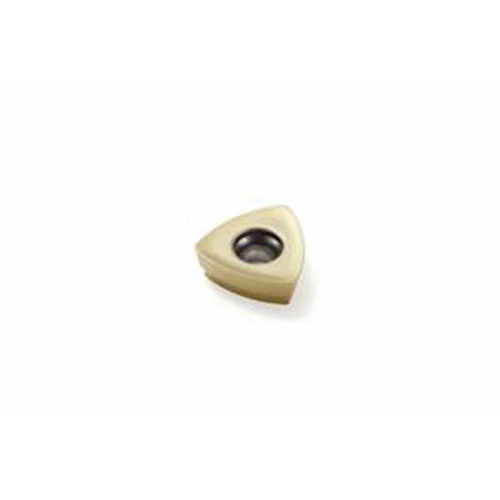

Seco High Feed Milling Single Sided Insert 16 x 1.2 x 4.76mm F25M Grade (M08 Geometry) 218.19-160T-04-M08,F25M Pack of 10
High Feed Milling Insert F25M Grade (M08 Geometry)
$331.76
