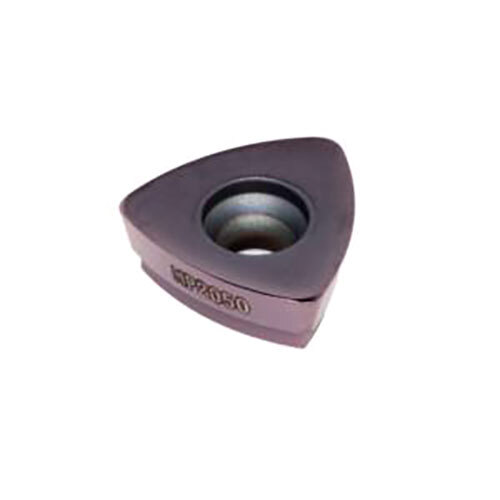

Seco High Feed Milling Single Sided Insert 16 x 1.2 x 4.76mm MP2050 Grade (M08 Geometry) 218.19-160T-04-M08,MP2050 Pack of 10

Description

Seco High Feed Milling Single Sided Insert 16 x 1.2 x 4.76mm MP2050 Grade (M08 Geometry) 218.19-160T-04-M08,MP2050 Pack of 10

High Feed Milling Insert MP2050 Grade (M08 Geometry)

MP2050 grade.
M08 geometry.
3 cutting edge, single-sided insert.
218.19-160 Insert Seat Size Code (SSC).

About MP2050 Grade

PVD coated grade.
The PVD-coated grade for tough machining conditions and high temperatures in martensitic and austenitic stainless steels, dry and wet machining possible.
The alternative in superalloys in unstable conditions.
(Ti, Si)N/(Ti, Al)N.

Specifications

AIMS SKU A0121892

Brand Seco

Model Number 03079913

Barcode Number 79913030001001

Type Milling Insert

Designation 218.19-160T-04-M08,MP2050

Grade MP2050

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Both

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 1.2

Insert Seat Size Code (SSC) 218.19-160

Inscribed Circle Diameter (IC) mm 11.18

Clearance Angle Major (an) Deg 12.0 deg

Curved Cutting Edge Radius (CCER) mm 16
