Specifications
- AIMS SKU A0121894
- Brand Seco
- Model Number 02881994
- Barcode Number 81994028001000
- Type Milling Insert
- Designation 218.19-160T-04-MD11,MK2050
- Grade MK2050
- Grade Type Carbide PVD
- Cutting Edge Count (CEDC) 3
- Insert Hand (IH) Both
- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 1.2
- Insert Seat Size Code (SSC) 218.19-160
- Inscribed Circle Diameter (IC) mm 11.18
- Clearance Angle Major (an) Deg 12.0 deg
- Curved Cutting Edge Radius (CCER) mm 16
SKU: A0121894

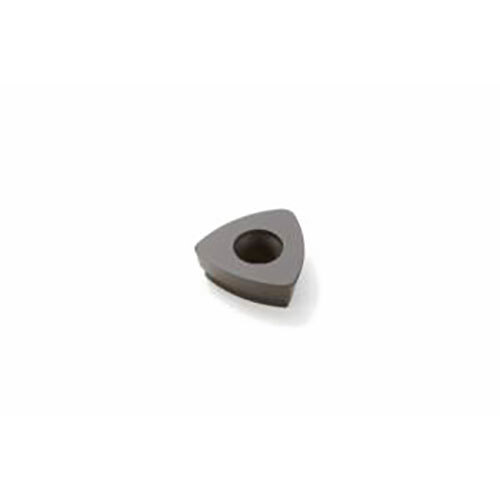

Seco High Feed Milling Single Sided Insert 16 x 1.2 x 4.76mm MK2050 Grade (MD11 Geometry) 218.19-160T-04-MD11,MK2050 Pack of 10
High Feed Milling Insert MK2050 Grade (MD11 Geometry)
$369.90
