Description
Specifications
- AIMS SKU A0121414
- Brand Seco
- Model Number 00046171
- Barcode Number 46171000000207
- Type Snap-Tap® Thread Turning Insert
- Designation 11NRA60-A1,CP500
- Profile Included Angle (PNA) deg 60.0 deg
- Profile Distance Ey (PDY) mm 0.7
- Profile Distance Ex (PDX) mm 0.8
- Tooth Count (NT) 1
- Thread Pitch Maximum (TPX) mm 1.5
- Thread Pitch Minimum (TPN) mm 0.5
- Threads Per Inch Maximum (TPIX) 16
- Threads Per Inch Minimum (TPIN) 48
- Thread Type (TTP) Internal
- Theoretical Cutting Edge Length (L) mm 11
- Inscribed Circle Diameter (IC) mm 6.35
- Insert Seat Size Code (SSC) 11
- Corner Radius (RE) mm 0.08
- Insert Thickness (S) mm 3
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 3
- Grade CP200
SKU: A0121414

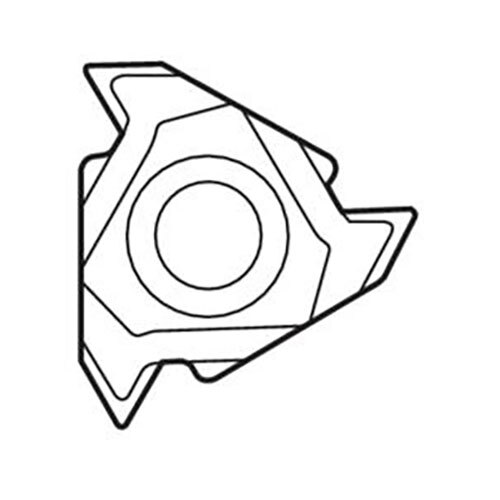

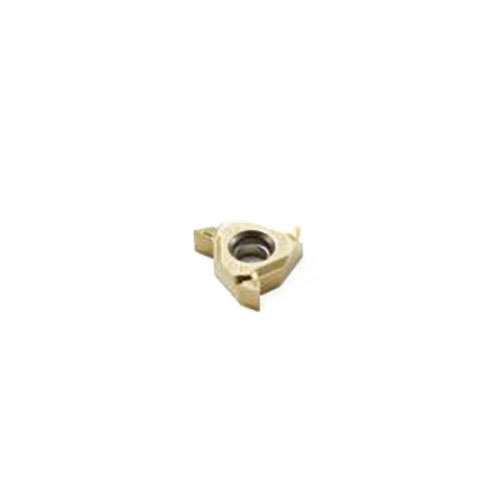

Seco Internal Snap-Tap® Thread Turning Insert 3 x 11mm Right 48-16 TPI CP500 V Profile 60° Thread A1 Chipbreaker 11NRA60-A1,CP500 Pack of 2
Thread Turning Insert 11NR-V Profile 60° Thread Grade-CP
$66.35
