Specifications
- AIMS SKU A0121453
- Brand Seco
- Model Number 00072714
- Barcode Number 72714000000201
- Designation 22NLN55,CP500
- Type Snap-Tap® Thread Turning Insert
- Threads Per Inch Maximum (TPIX) 5
- Insert Seat Size Code (SSC) 22
- Insert Hand (IH) Left

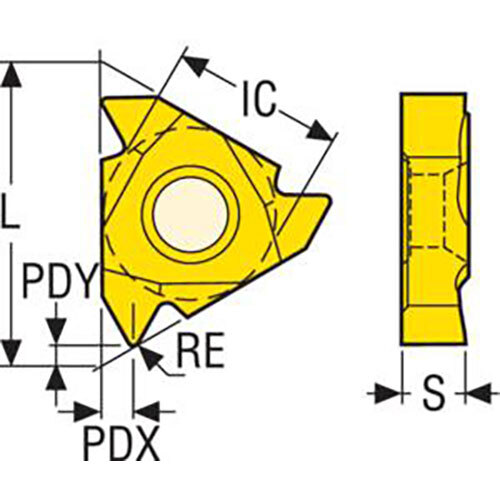

- Profile Distance Ey (PDY) mm 1.8
- Thread Pitch Maximum (TPX) mm 5
- Threads Per Inch Minimum (TPIN) 7
- Theoretical Cutting Edge Length (L) mm 22
- Corner Radius (RE) mm 0.4
- Cutting Edge Count (CEDC) 3
- Profile Distance Ex (PDX) mm 2.5
- Thread Pitch Minimum (TPN) mm 3.5
- Thread Type (TTP) Internal
- Inscribed Circle Diameter (IC) mm 12.7
- Insert Thickness (S) mm 4.71
- Grade CP200
- Profile Included Angle (PNA) deg 55.0 deg
- Tooth Count (NT) 1
SKU: A0121453

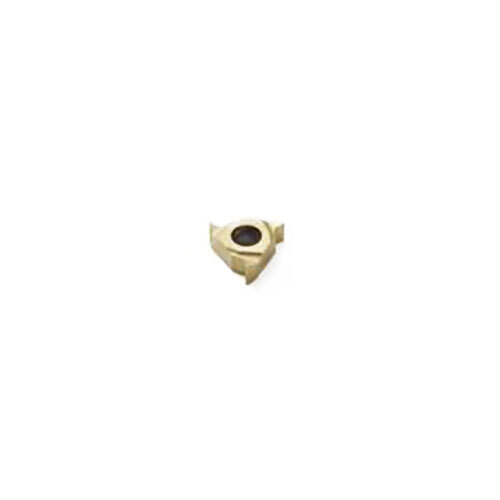

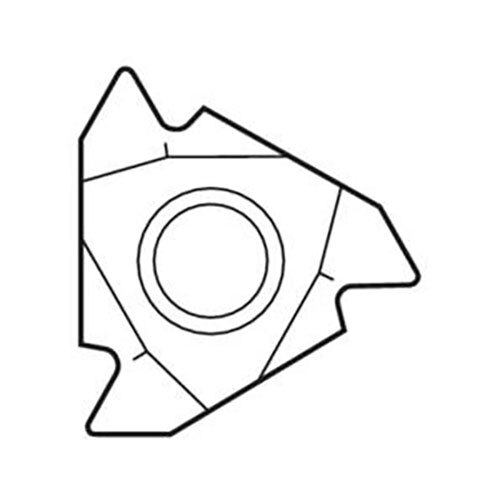

Seco Internal Snap-Tap® Thread Turning Insert 4.71 x 22mm Left 7-5 TPI CP500 V Profile 55° Thread 22NLN55,CP500 Pack of 2
Thread Turning Insert 22NL - V Profile 55° Thread Grade-
$132.89
