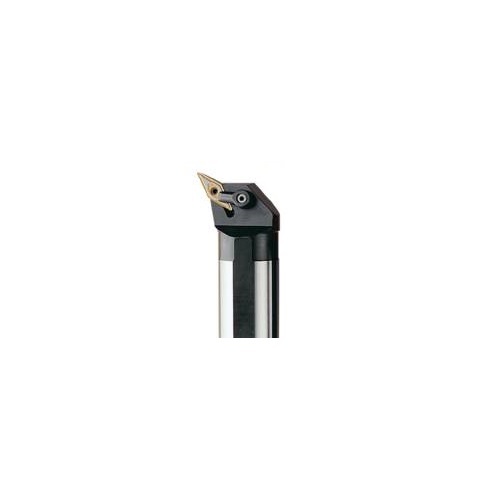

Seco Internal Turning Toolholder Solid Steel Multiple Lock 300 x 32 x 16mm Left 117.5° V Insert Shape S32T-MVPNL16

Turning Internal Toolholder (Solid Steel - Multiple Lock - P Type - V Insert Shape)

  • Solid Steel.
  • V insert shape.
  • 0° ISCA (Insert Side Clearance Angles).

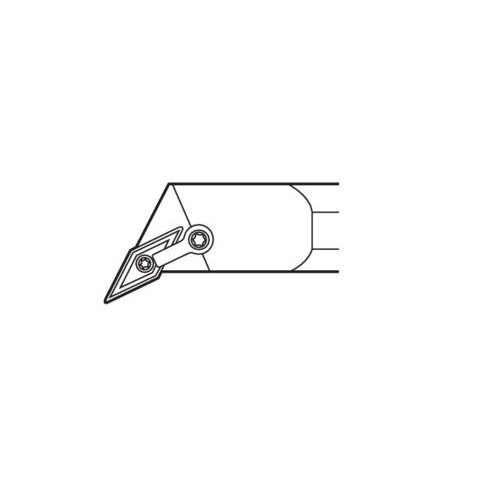

  • Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • P tool type, offset shank with 27.5° side and end cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114383
  • Brand Seco
  • Model Number 75002283
  • Barcode Number 2283750000102
  • Net Weight (kg) 1.788

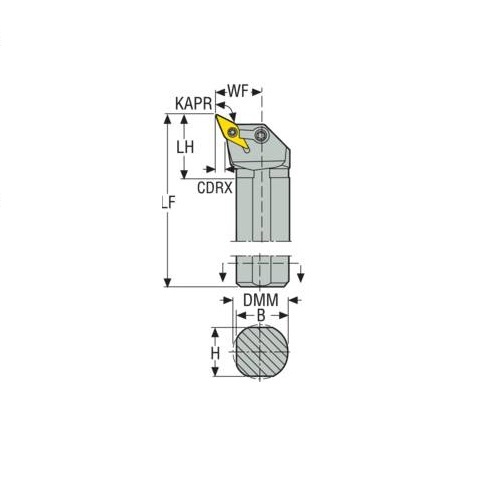

  • Designation S32T-MVPNL16
  • Shank Diameter (DMM) 32mm
  • Cutting Depth Radial Max (CDRX) mm 10
  • Cutting Depth Max (CDX) mm 10
  • Functional Width (WF) mm 27
  • Inclination Angle (LAMS) -12.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) P
  • Cutting Diameter Internal Minimum (DCINN) 46
  • Functional Length (LF) 300mm
  • Height Of Tool Holder Shank (H) mm 30
  • Head Length (LH) mm 50
  • Tool Cutting Edge Angle (KAPR) 117.5 deg
  • Connection Text Workpiece Side (ctws) VN1604
  • Shank Width (b) mm 31
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 32
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Type Turning Toolholder
  • Version (internal/external/both) InternalShank Type:Cylindrical
  • Tool Holder Type Solid Steel
  • Insert Clamping System (ICS) Multiple Lock
  • Tool Type P Type
