Description

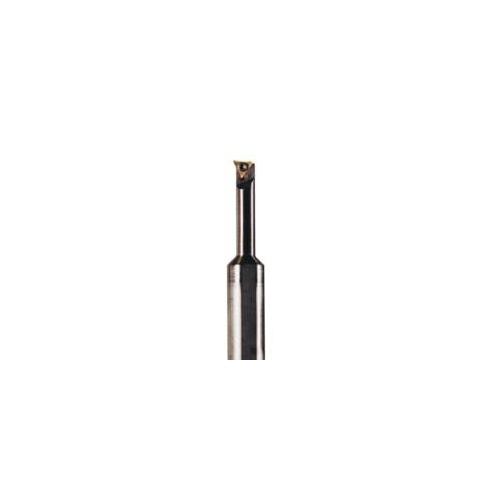

Seco Internal Turning Toolholder Heavy Metal Screw Lock 82.55 x 12.7 x 7.62mm Right 95° T Insert Shape H0408STLDR-1.2

Turning Internal Toolholder (Heavy Metal - Screw Lock - L Type - T Insert Shape - 1.2mm Cutting Edge Length)

  • Heavy Metal.

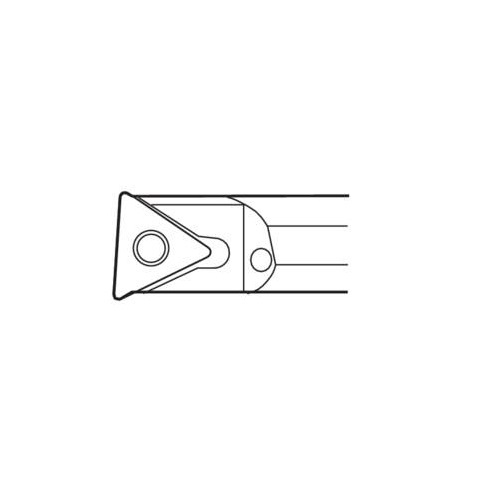

  • T insert shape.
  • 15° ISCA (Insert Side Clearance Angles).
  • Screw Lock.
  • L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114734
  • Brand Seco
  • Model Number 00057666
  • Barcode Number 57666000000105
  • Net Weight (kg) 0.18
  • Designation H0408STLDR-1.2
  • Type Turning Toolholder
  • Insert Clamping System (ICS) Screw Lock
  • Shank Type Cylindrical

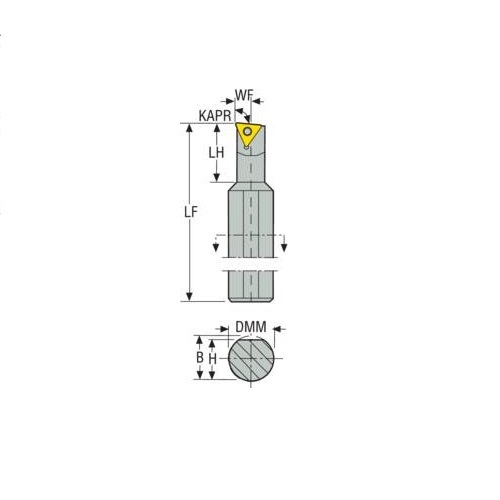

  • Body Diameter (BD) mm 6.4
  • Insert Size Inscribed Circle Diameter (mm) 1.2
  • Cutting Depth Radial Max (CDRX) mm 1.2
  • Functional Width (WF) mm 4.5
  • Inclination Angle (LAMS) -12.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Cutting Diameter Internal Minimum (DCINN) 7.62
  • Functional Length (LF) 82.55
  • Shank Diameter (DMM) 12.7
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Tool Holder Type Heavy Metal
  • Height Of Tool Holder Shank (H) mm 12.2
  • Head Length (LH) mm 31.8
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Connection Text Workpiece Side (ctws) TD06T0
  • Shank Width (b) mm 12.7
  • Version (internal/external/both) Internal
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 6.35
SKU: A0114734

Seco Internal Turning Toolholder Heavy Metal Screw Lock 82.55 x 12.7 x 7.62mm Right 95° T Insert Shape H0408STLDR-1.2

Turning Internal Toolholder (Heavy Metal - Screw Lock -

$418.00
RRP $522.50
SAVE $104.50 (20%)
