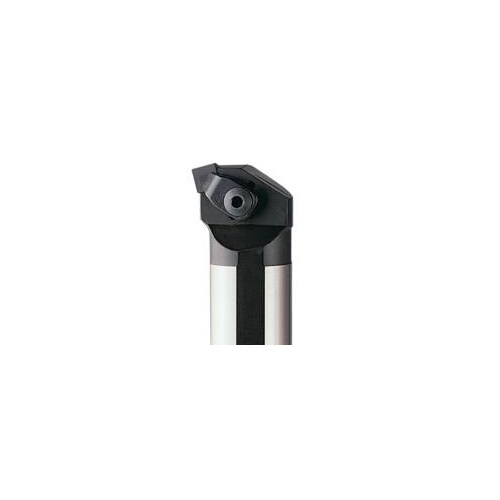

Seco Internal Turning Toolholder Solid Steel Clamp Lock 200 x 25 x 9mm Right 75° S Insert Shape S25R-CSKNR09

Turning Internal Toolholder (Solid Steel - Clamp Lock - K Type - S Insert Shape)

  • Solid Steel.
  • S insert shape.
  • 0° ISCA (Insert Side Clearance Angles).

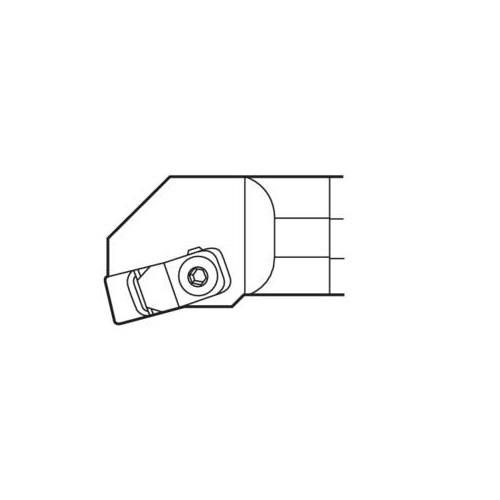

  • Clamp lock assembly, (PC tool holders).
  • K tool type, offset shank with 15° (75°) end cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114729
  • Brand Seco
  • Model Number 75069282
  • Barcode Number 69282750000100
  • Net Weight (kg) 0.728
  • Designation S25R-CSKNR09
  • Type Turning Toolholder
  • Tool Holder Type Solid Steel
  • Shank Type Cylindrical

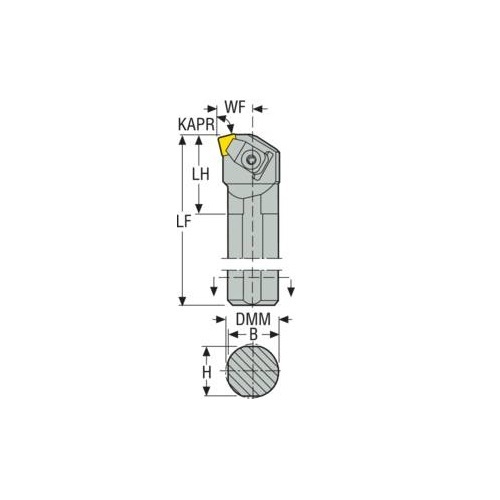

  • Functional Width (WF) mm 17
  • Cutting Edge Length (mm) 9
  • Inclination Angle (LAMS) -12.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) K
  • Cutting Diameter Internal Minimum (DCINN) 32
  • Functional Length (LF) 200
  • Shank Diameter (DMM) 25
  • Insert Clamping System (ICS) Clamp Lock
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Height Of Tool Holder Shank (H) mm 23
  • Head Length (LH) mm 35
  • Tool Cutting Edge Angle (KAPR) 75.0 deg
  • Connection Text Workpiece Side (ctws) SN0903
  • Shank Width (b) mm 24
  • Version (internal/external/both) Internal
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 25
SKU: A0114729

Seco Internal Turning Toolholder Solid Steel Clamp Lock 200 x 25 x 9mm Right 75° S Insert Shape S25R-CSKNR09

Turning Internal Toolholder (Solid Steel - Clamp Lock -

$480.48
RRP $600.60
SAVE $120.12 (20%)
