Seco Internal Turning Toolholder Solid Steel Multiple Lock Left 95° V Insert Shape Y Tool - SECO

Description

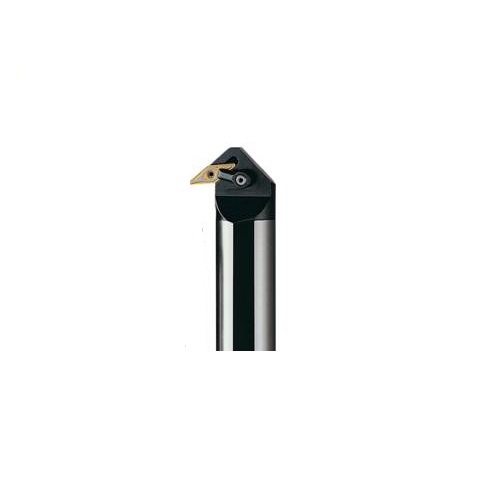

Seco Internal Turning Toolholder Solid Steel Multiple Lock 300 x 32 x 16mm Left 95° V Insert Shape Y Tool S32T-MVYNL16

Turning Internal Toolholder (Solid Steel - Multiple Lock - Y Type - V Insert Shape)

Solid Steel.
V insert shape.
0° ISCA (Insert Side Clearance Angles).

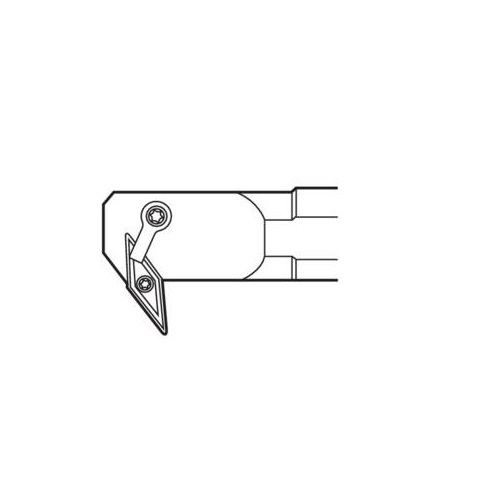

Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
Y tool type.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114392

Brand Seco

Model Number 75002285

Barcode Number 2285750000106

Net Weight (kg) 1.919

Designation S32T-MVYNL16

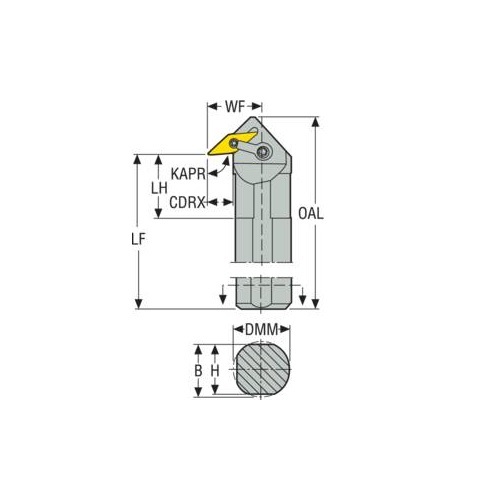

Functional Length (LF) 300mm

Body Diameter Max (BDX) mm 32

Cutting Depth Radial Max (CDRX) mm 13

Cutting Depth Max (CDX) mm 13

Functional Width (WF) mm 30

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -12.0 deg

Tool Cutting Edge Angle Code (KAPRC) Y

Cutting Diameter Internal Minimum (DCINN) 48

Shank Diameter (DMM) 32mm

Height Of Tool Holder Shank (H) mm 30

Head Length (LH) mm 50

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) VN1604

Shank Width (b) mm 31

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 32

Rake Angle Orthogonal (gamo) -5.0 deg

Type Turning Toolholder
Version (internal/external/both) InternalShank Type:Cylindrical
Tool Holder Type Solid Steel
Insert Clamping System (ICS) Multiple Lock
Tool Type Y Type
